Baur Top Cabriolet for BMW 3 Series E21 320 (1982)

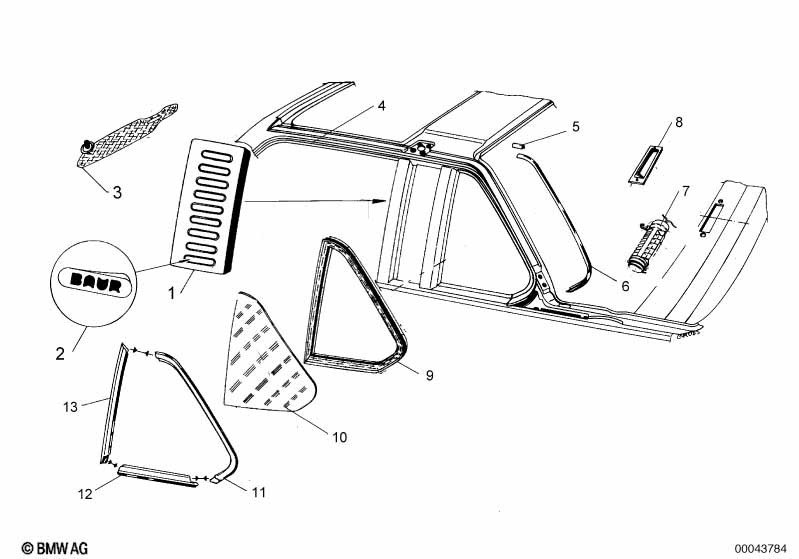

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering left | SCHWARZ | 1 | 51360006024 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering right | SCHWARZ | 1 | 51360006025 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering left | BLAU | 1 | 51360006026 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering right | BLAU | 1 | 51360006027 | ENDED | Shop at ECS Tuning | ||||
| 02 | Emblem adhered | "BAUR" | 2 | 51140006000 | $33.15 | ENDED | Shop at ECS Tuning | |||
| 03 | Left sun visor | 1 | 51160006019 | ENDED | Shop at ECS Tuning | |||||
| 03 | Right sun visor | 1 | 51160006020 | ENDED | Shop at ECS Tuning | |||||
| 04 | Water deflector front left | 1 | 51131827451 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| must be shortened | ||||||||||
| 04 | Water deflector front right | 1 | 51131827452 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| must be shortened | ||||||||||
| 05 | Moulding joint left | 1 | 51131844035 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 05 | Moulding joint right | 1 | 51131844036 | $7.04 | Shop at ECS Tuning | |||||
| 06 | Left water deflector | 1 | 51130006001 | ENDED | Shop at ECS Tuning | |||||
| 06 | Right water deflector | 1 | 51130006002 | ENDED | Shop at ECS Tuning | |||||
| 07 | Fan | BAUR | 1 | 64110006625 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 51460006023 | ENDED | Shop at ECS Tuning | |||||
| 09 | Window sealing rear left | 1 | 51360006054 | $107.14 | ENDED | Shop at ECS Tuning | ||||
| 09 | Window sealing rear right | 1 | 51360006055 | ENDED | Shop at ECS Tuning | |||||
| 10 | Side windwow clear left | 1 | 51360006285 | $145.08 | ENDED | Shop at ECS Tuning | ||||
| 10 | Side window clear right | 1 | 51360006286 | ENDED | Shop at ECS Tuning | |||||
| 10 | Side window, green, left | 1 | 51360006287 | $162.94 | ENDED | Shop at ECS Tuning | ||||
| 10 | Side window green right | 1 | 51360006288 | ENDED | Shop at ECS Tuning | |||||
| 11 | Molding left | 1 | 51360006283 | $117.51 | ENDED | Shop at ECS Tuning | ||||
| 11 | Molding right | 1 | 51360006284 | $117.51 | ENDED | Shop at ECS Tuning | ||||
| 12 | Molding left | 1 | 51360006062 | $49.29 | ENDED | Shop at ECS Tuning | ||||
| 12 | Molding right | 1 | 51360006063 | $48.39 | Shop at ECS Tuning | |||||
| 13 | Molding left | CHROM | 1 | 51360006056 | $46.21 | Shop at ECS Tuning | ||||
| 13 | Molding right | CHROM | 1 | 51360006057 | $46.21 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E21 320 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Covering left (Part #51360006024).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E21 320 produced during 1982. These technical specifications ensure that parts like the Covering left (51360006024) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Covering left by locating its position on the schematic, which then links to the official BMW part number 51360006024 for the Sliding Roof / Folding Top section.
