Baur Top Cabriolet for BMW 3 Series E21 318i (1982)

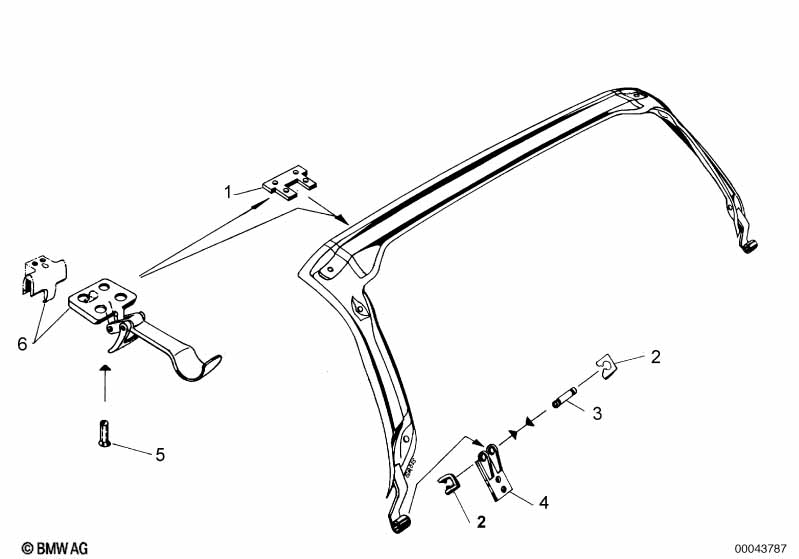

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock plate | 2 | 54310006041 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pin | 2 | 54310006029 | ENDED | Shop at ECS Tuning | |||||
| 04 | Suspension | 2 | 54310006028 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lock | 2 | 54310006052 | Shop at ECS Tuning | ||||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 06 | Lock | SCHWARZ | 2 | 54210006053 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | 2 | 54210006292 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Lock plate (Part #54310006041).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the Lock plate (54310006041) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the Lock plate by locating its position on the schematic, which then links to the official BMW part number 54310006041 for the Sliding Roof / Folding Top section.
