Baur Top Cabriolet for BMW 3 Series E21 320 (1977)

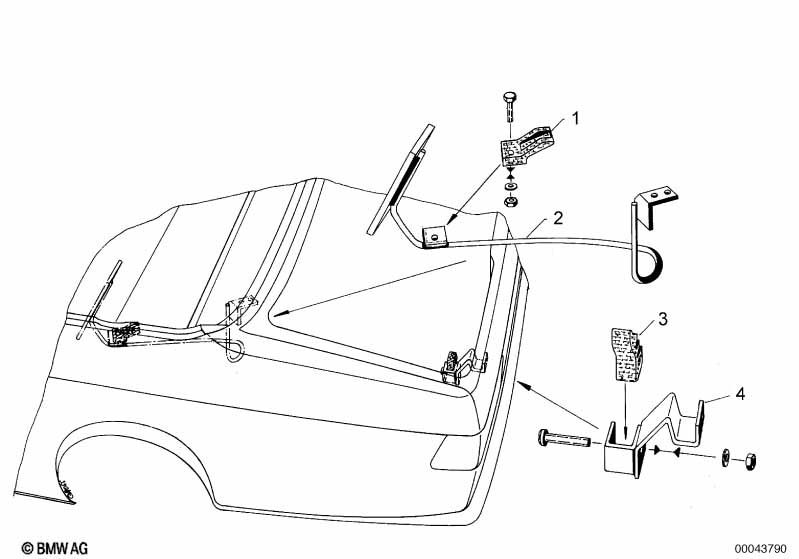

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 2 | 54210006046 | $16.88 | Shop at ECS Tuning | |||||
| 02 | Guide left | 1 | 54210006044 | ENDED | Shop at ECS Tuning | |||||
| 02 | Guide right | 1 | 54210006045 | ENDED | Shop at ECS Tuning | |||||
| 03 | Left hardtop support | 1 | 54210006047 | $81.80 | Shop at ECS Tuning | |||||
| 03 | Right hardtop support | 1 | 54210006048 | $81.80 | Shop at ECS Tuning | |||||
| 04 | Left hardtop support | BAUR | 1 | 51210006042 | $46.03 | Shop at ECS Tuning | ||||
| 04 | Right hardtop support | 1 | 54210006043 | $52.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #54210006046).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Support (54210006046) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 54210006046 for the Sliding Roof / Folding Top section.
