Baur Top Cabriolet for BMW 3 Series E21 323i (1982)

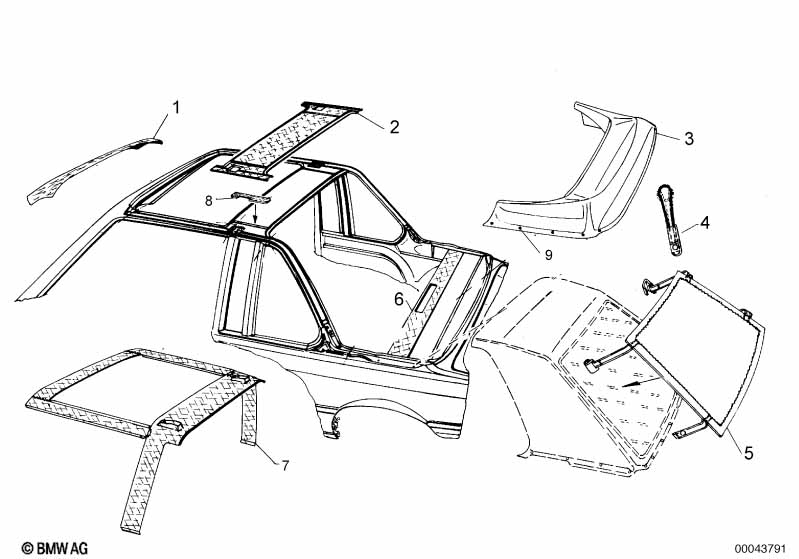

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield | PVC SCHWARZ | 1 | 54210006290 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover, windshield | TEXTIL SCHWARZ | 1 | 54210006297 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover, windshield | TEXTIL BLAU | 1 | 54210006298 | Shop at ECS Tuning | |||||
| 02 | Trim panel roll bar | PVC SCHWARZ | 1 | 54210006289 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel roll bar | TEXTIL SCHWARZ | 1 | 54210006301 | Shop at ECS Tuning | |||||
| 02 | Trim panel roll bar | TEXTIL BLAU | 1 | 54210006302 | ENDED | Shop at ECS Tuning | ||||
| 03 | Soft-top covering | SCHWARZ | 1 | 54310006295 | $306.74 | Shop at ECS Tuning | ||||
| 03 | Soft-top covering | BLAU | 1 | 54310006303 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rubber band | 2 | 54310006322 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 54310006296 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim panel roll bar | INNEN | 1 | 51440006293 | ENDED | Shop at ECS Tuning | ||||
| 08 | Strip | 2 | 54210010070 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Cover, windshield (Part #54210006290).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Cover, windshield (54210006290) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Cover, windshield by locating its position on the schematic, which then links to the official BMW part number 54210006290 for the Sliding Roof / Folding Top section.
