Baur Top Cabriolet for BMW 3 Series E21 323i (1982)

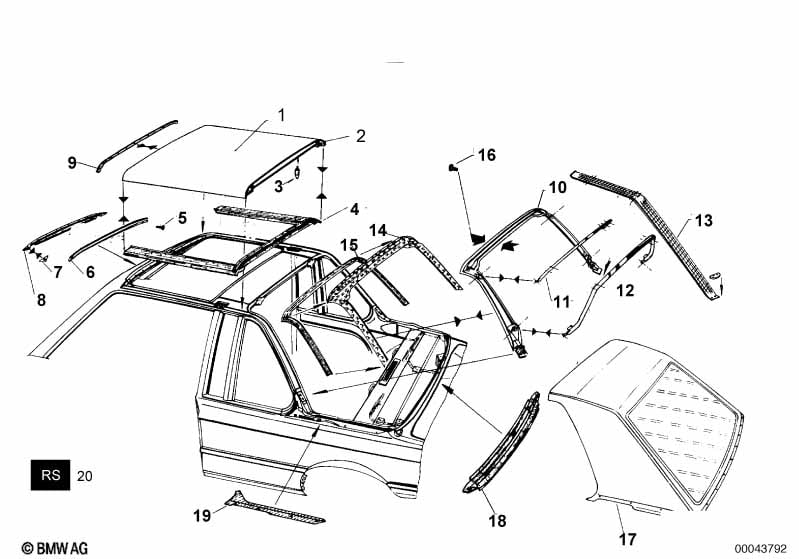

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Outer cover for hardtop | PVC SCHWARZ | 1 | 54210006294 | ENDED | Shop at ECS Tuning | ||||
| 01 | Outer cover for hardtop | TEXTIL SCHWARZ | 1 | 54210006299 | $521.44 | Shop at ECS Tuning | ||||
| 01 | Outer cover for hardtop | TEXTIL BLAU | 1 | 54210006300 | Shop at ECS Tuning | |||||
| 02 | Hardtop | PVC SCHWARZ | 1 | 54210006318 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hardtop | TEXTIL SCHWARZ | 1 | 54210006319 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hardtop | TEXTIL BLAU | 1 | 54210006320 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hardtop | TEXTIL BRAUN | 1 | 54210006321 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pin | 2 | 54210006039 | ENDED | Shop at ECS Tuning | |||||
| 04 | sealing | 1 | 51710006304 | $81.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Strip | 1 | 54210006040 | ENDED | Shop at ECS Tuning | |||||
| 07 | Covering plate, left | F. ABDICHTUNG | 1 | 51710010068 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate, right | F. ABDICHTUNG | 1 | 51710010069 | Shop at ECS Tuning | |||||
| 08 | Sealing front | 1 | 51710006307 | $102.06 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sealing front | 1 | 51710006305 | $48.98 | ENDED | Shop at ECS Tuning | ||||
| 10 | Roof bow | 1 | 54310006311 | ENDED | Shop at ECS Tuning | |||||
| 11 | Rear roof bow | 1 | 54310006309 | ENDED | Shop at ECS Tuning | |||||
| 12 | Rear roof bow | 1 | 54310006310 | ENDED | Shop at ECS Tuning | |||||
| 13 | Belt | 2 | 54310006314 | ENDED | Shop at ECS Tuning | |||||
| 14 | Trim panel | 1 | 51440006291 | $40.46 | ENDED | Shop at ECS Tuning | ||||
| 15 | sealing | 1 | 51710006308 | $104.33 | Shop at ECS Tuning | |||||
| 16 | Adjusting bar | 2 | 54310006454 | ENDED | Shop at ECS Tuning | |||||
| 17 | Convertible top cover | PVC SCHWARZ | 1 | 54310006315 | $675.18 | ENDED | Shop at ECS Tuning | |||
| 17 | Convertible top cover | TEXTIL SCHWARZ | 1 | 54310006316 | $728.21 | Shop at ECS Tuning | ||||
| 17 | Convertible top cover | TEXTIL BLAU | 1 | 54310006317 | $873.27 | Shop at ECS Tuning | ||||
| 18 | sealing | 1 | 51710006306 | $107.55 | ENDED, +core | Shop at ECS Tuning | ||||
| 19 | Mounting strip | LINKS | 1 | 54310006312 | $46.59 | ENDED | Shop at ECS Tuning | |||
| 19 | Mounting strip | RECHTS | 1 | 54310006313 | $46.59 | ENDED | Shop at ECS Tuning | |||
| 20 | Installation kit | 1 | 54310006438 | $42.12 | ENDED | Shop at ECS Tuning | ||||
| without illustration | ||||||||||
| 21 | Edge protection | 4,80 M | 1 | 51360010076 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
