Baur Top Cabriolet for BMW 3 Series E30 M3 (1990)

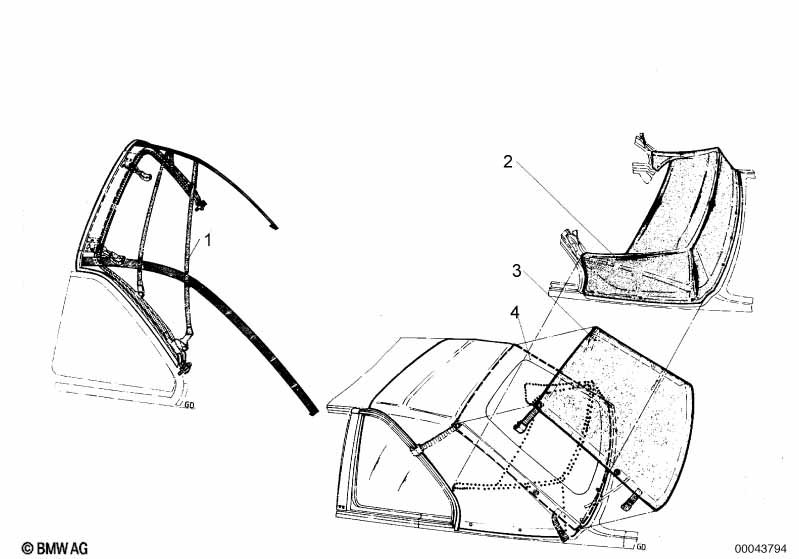

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Convertible top linkage rods | 1 | 54310006419 | ENDED | Shop at ECS Tuning | |||||
| 02 | Soft-top covering | SCHWARZ | 1 | 54310006391 | $323.37 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 54310006452 | $72.36 | ENDED | Shop at ECS Tuning | ||||
| 04 | Convertible top linkage rods | BEZUG PVC SCHW. | 1 | 54310006424 | ENDED | Shop at ECS Tuning | ||||
| 04 | Convertible top linkage rods | BEZ.TEXTIL BLAU | 1 | 54310006425 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Convertible top linkage rods (Part #54310006419).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Convertible top linkage rods (54310006419) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Convertible top linkage rods by locating its position on the schematic, which then links to the official BMW part number 54310006419 for the Sliding Roof / Folding Top section.
