Baur Top Cabriolet for BMW 3 Series E30 M3 (1990)

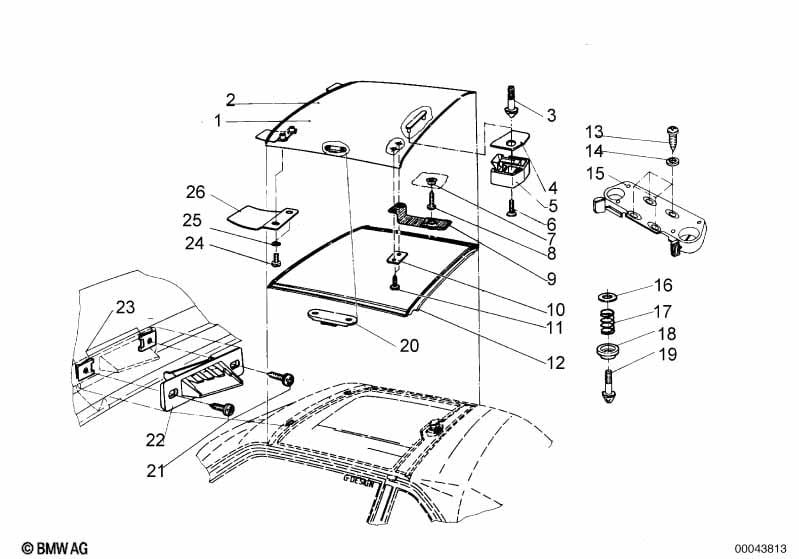

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hardtop | PVC SCHWARZ | 1 | 54210006441 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hardtop | TEXTIL SCHWARZ | 1 | 54210006442 | $750.66 | ENDED | Shop at ECS Tuning | |||
| 01 | Hardtop | TEXTIL BLAU | 1 | 54210006443 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering | PVC SCHWARZ | 1 | 54210006401 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering | TEXTIL SCHWARZ | 1 | 54210006402 | Shop at ECS Tuning | |||||
| 02 | Covering | TEXTIL BLAU | 1 | 54210006403 | $247.75 | Shop at ECS Tuning | ||||
| 02 | Covering | TEXTIL BRAUN | 1 | 54210006404 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock pin | 1 | 54210006360 | Shop at ECS Tuning | ||||||
| -> Baur Karosserie 42265 | ||||||||||
| 04 | Plate | 1,0 MM | 2 | 54210006340 | Shop at ECS Tuning | |||||
| -> Baur Karosserie 42265 | ||||||||||
| 05 | Suspension left | 1 | 54210006351 | $13.60 | Shop at ECS Tuning | |||||
| -> Baur Karosserie 42265 | ||||||||||
| 05 | Suspension right | 1 | 54210006352 | $13.60 | Shop at ECS Tuning | |||||
| -> Baur Karosserie 42265 | ||||||||||
| 09 | Catch | 2 | 54210006439 | ENDED | Shop at ECS Tuning | |||||
| 10 | Holder | 2 | 54210006440 | ENDED | Shop at ECS Tuning | |||||
| 12 | sealing | 1 | 51710006412 | $191.82 | Shop at ECS Tuning | |||||
| 15 | Retrofit kit lift handle | PLATTE | 1 | 54210006362 | ENDED | Shop at ECS Tuning | ||||
| -> Baur Karosserie 42265 | ||||||||||
| 42266 -> Baur Karosserie | ||||||||||
| 17 | Compression spring | 2 | 54210006361 | Shop at ECS Tuning | ||||||
| 18 | Bush | 2 | 54210006356 | ENDED | Shop at ECS Tuning | |||||
| 19 | Lock pin | 2 | 54210006357 | Shop at ECS Tuning | ||||||
| 20 | Holder | SATZ | 1 | 54210016831 | Shop at ECS Tuning | |||||
| 21 | Left hardtop support | SCHWARZ | 1 | 54210006343 | $6.77 | Shop at ECS Tuning | ||||
| 22 | Left hardtop support | SCHWARZ | 1 | 54210006343 | $6.77 | Shop at ECS Tuning | ||||
| 22 | Right hardtop support | SCHWARZ | 1 | 54210006344 | $21.89 | Shop at ECS Tuning | ||||
| 26 | Spring left | 1 | 54210006341 | ENDED | Shop at ECS Tuning | |||||
| 26 | Spring right | 1 | 54210006342 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
