Baur Top Cabriolet for BMW 3 Series E30 318i (1991)

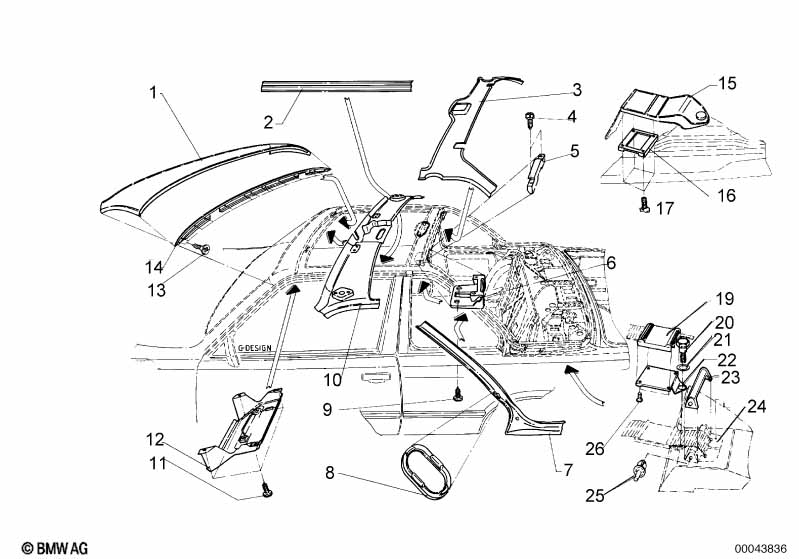

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield | PVC SCHWARZ | 1 | 54210006397 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover, windshield | TEXTIL SCHWARZ | 1 | 54210006398 | Shop at ECS Tuning | |||||
| 01 | Cover, windshield | TEXTIL BLAU | 1 | 54210006399 | Shop at ECS Tuning | |||||
| 02 | Trim panel left | 1 | 51440006395 | Shop at ECS Tuning | ||||||
| 02 | Trim panel right | 1 | 51440006396 | Shop at ECS Tuning | ||||||
| 03 | Cover, windshield | PVC SCHWARZ | 1 | 54210006397 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pad | 1 | 54210006339 | Shop at ECS Tuning | ||||||
| 06 | Cover | 2 | 54210006383 | $95.98 | ENDED | Shop at ECS Tuning | ||||
| 07 | Trim panel left | 1 | 51440006388 | Shop at ECS Tuning | ||||||
| 07 | Trim panel right | 1 | 51440006389 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover | 2 | 51440006385 | ENDED | Shop at ECS Tuning | |||||
| 10 | Trim panel | 1 | 51440006386 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement | 1 | 51460010078 | ENDED | Shop at ECS Tuning | |||||
| 14 | Covering plate | 1 | 54210006384 | Shop at ECS Tuning | ||||||
| 15 | Belt deflector | OBEN | 2 | 72110006447 | $12.76 | Shop at ECS Tuning | ||||
| -> Baur Karosserie 45213 | ||||||||||
| 16 | Belt deflector | UNTEN | 2 | 72110006446 | $4.26 | Shop at ECS Tuning | ||||
| -> Baur Karosserie 45213 | ||||||||||
| 45214 -> Baur Karosserie | ||||||||||
| 19 | Belt deflector | OBEN | 2 | 72110006448 | Shop at ECS Tuning | |||||
| 20 | Screw | FÜR GURTFÜHRUNG | 2 | 51130010072 | ENDED | Shop at ECS Tuning | ||||
| 45214 -> Baur Karosserie | ||||||||||
| 22 | Belt deflector | UNTEN | 2 | 72110006449 | Shop at ECS Tuning | |||||
| 24 | Belt deflector | UNTEN | 2 | 72110006449 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Baur Top Cabriolet?
- This technical diagram illustrates the Baur Top Cabriolet within the Sliding Roof / Folding Top group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Cover, windshield (Part #54210006397).
- Which models use the hardware listed in this Baur Top Cabriolet?
- The hardware and components featured in the Baur Top Cabriolet are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Cover, windshield (54210006397) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baur Top Cabriolet assembly?
- Each item in the Baur Top Cabriolet corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Cover, windshield by locating its position on the schematic, which then links to the official BMW part number 54210006397 for the Sliding Roof / Folding Top section.
