Baur Top Cabriolet for BMW 3 Series E30 323i (1986)

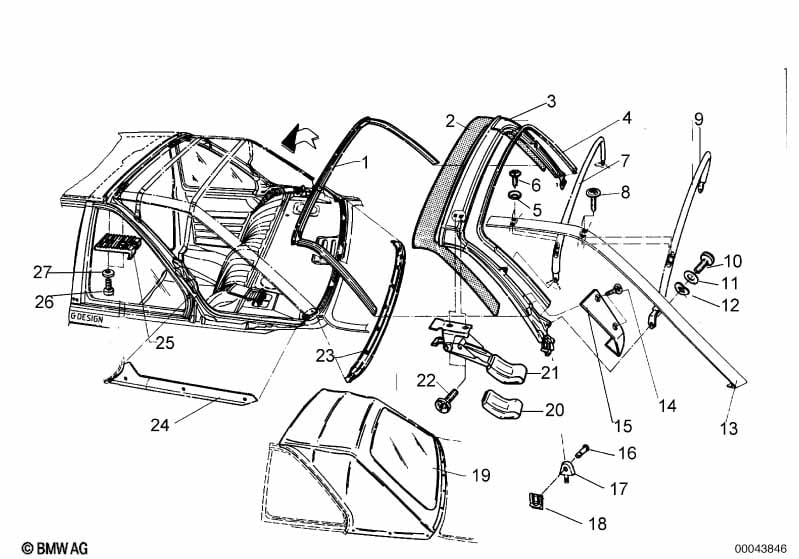

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | sealing | 1 | 51710006415 | $115.55 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel | 1 | 54310006390 | ENDED | Shop at ECS Tuning | |||||
| 03 | Roof bow | 1 | 54310006420 | ENDED | Shop at ECS Tuning | |||||
| 04 | Filling rubber | 1 | 51710006413 | Shop at ECS Tuning | ||||||
| 07 | Rear roof bow | 1 | 54310006423 | Shop at ECS Tuning | ||||||
| 08 | Fillister head self-tapping screw | B2,9X13 | 14 | 51211865837 | $5.55 | Shop at ECS Tuning | ||||
| 09 | Rear roof bow | 1 | 54310006417 | Shop at ECS Tuning | ||||||
| 13 | Belt | 2 | 54310006436 | $27.09 | ENDED | Shop at ECS Tuning | ||||
| 15 | End piece | LINKS | 1 | 54310006393 | ENDED | Shop at ECS Tuning | ||||
| 15 | End piece | RECHTS | 1 | 54310006394 | ENDED | Shop at ECS Tuning | ||||
| 16 | Pin | 2 | 54310006437 | ENDED | Shop at ECS Tuning | |||||
| 17 | Eye bolt | 2 | 54310006418 | Shop at ECS Tuning | ||||||
| 19 | Convertible top cover | PVC SCHWARZ | 1 | 54310006432 | ENDED | Shop at ECS Tuning | ||||
| 19 | Convertible top cover | TEXTIL SCHWARZ | 1 | 54310006433 | $791.38 | Shop at ECS Tuning | ||||
| 19 | Convertible top cover | TEXTIL BLAU | 1 | 54310006434 | $1004.40 | Shop at ECS Tuning | ||||
| 20 | Case | 2 | 54310006346 | $23.10 | ENDED | Shop at ECS Tuning | ||||
| 21 | Lock left | OHNE HÜLLE | 1 | 54310006348 | $66.00 | Shop at ECS Tuning | ||||
| 21 | Lock right | OHNE HÜLLE | 1 | 54310006349 | $66.00 | Shop at ECS Tuning | ||||
| 23 | sealing | 1 | 51710006414 | $84.67 | Shop at ECS Tuning | |||||
| 24 | Mounting strip | LINKS | 1 | 54310006421 | ENDED | Shop at ECS Tuning | ||||
| 24 | Mounting strip | RECHTS | 1 | 54310006422 | ENDED | Shop at ECS Tuning | ||||
| 25 | Adjusting bar | 2 | 54310006454 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
