Baur Top Cabriolet for BMW 3 Series E30 320i (1990)

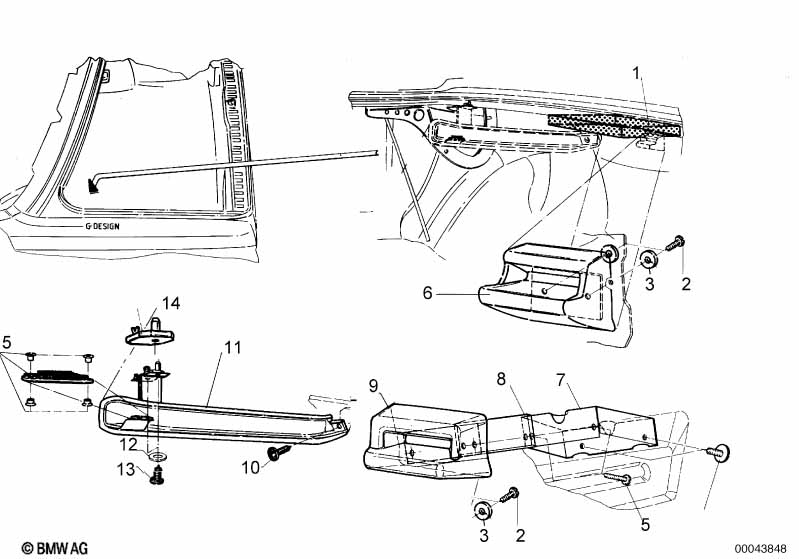

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upholstered cushion | 1 | 54210006350 | ENDED | Shop at ECS Tuning | |||||
| 06 | Bracket, compression spring | 2 | 54310006347 | Shop at ECS Tuning | ||||||
| -> Baur Karosserie 43460 | ||||||||||
| For vehicles with Ski bag |
=Yes |
|||||||||
| 07 | Intermediate piece, left | 1 | 54210006365 | ENDED | Shop at ECS Tuning | |||||
| 07 | Intermediate piece, right | 1 | 54210006366 | ENDED | Shop at ECS Tuning | |||||
| 07 | Spacer | 2 | 54210006367 | Shop at ECS Tuning | ||||||
| Baur Karosserie 43461 -> | ||||||||||
| 09 | Bracket, compression spring | RECHTS | 1 | 54210006364 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket, compression spring | LINKS | 1 | 54310006363 | Shop at ECS Tuning | |||||
| 11 | Left pad | 1 | 54210006353 | ENDED | Shop at ECS Tuning | |||||
| 11 | Pad right | 1 | 54210006354 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Ski bag |
=Yes |
|||||||||
| 11 | Support left | LINKS | 1 | 54210006368 | Shop at ECS Tuning | |||||
| 11 | Support right | 1 | 54210006369 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
