Folding top for BMW 3 Series E46 330Ci (2003)

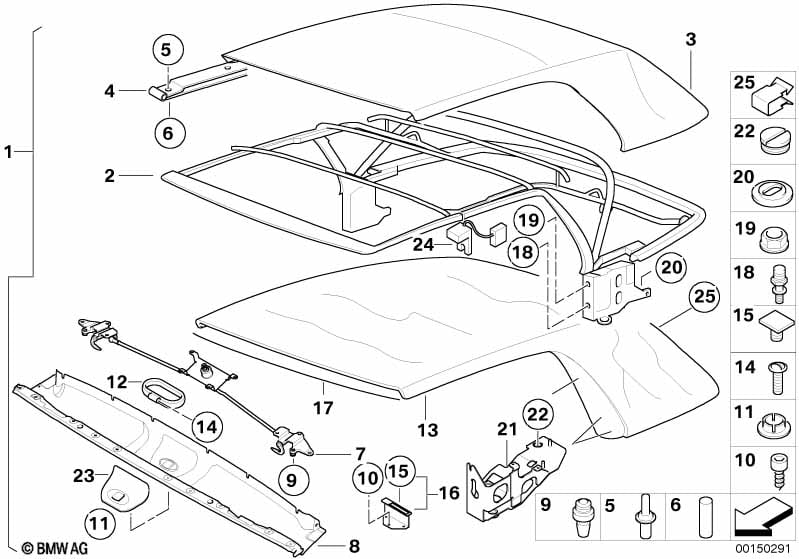

This Folding top technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Softtop, electromech. all-autom. |
S399A=No |
||||||||
| 01 | Manual folding top | ANTHRAZIT | 1 | 09/2003 | 54318229832 | $5607.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Manual folding top | DUNKELBLAU | 1 | 09/2003 | 54318243244 | $5719.48 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Folding-top frame | 1 | 54317030541 | $3036.59 | Shop at ECS Tuning | |||||
| 03 | Cover, folding top | SCHWARZ | 1 | 54318229839 | $2380.97 | Shop at ECS Tuning | ||||
| 03 | Cover, folding top | DUNKELBLAU | 1 | 54318243262 | $2380.97 | Shop at ECS Tuning | ||||
| 04 | Left tension belt | 1 | 54318268975 | $107.28 | Shop at ECS Tuning | |||||
| 04 | Right tension belt | 1 | 54318268976 | $107.28 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 2 | 54317043548 | $1.53 | Shop at ECS Tuning | |||||
| 06 | Guide pin | 2 | 54317043547 | $2.52 | Shop at ECS Tuning | |||||
| 07 | Folding top lock | 1 | 54318229819 | $186.41 | Shop at ECS Tuning | |||||
| 08 | Windshield frame cover | 1 | 54318229826 | $227.87 | Shop at ECS Tuning | |||||
| 09 | Centering pin | 2 | 54317043550 | $12.32 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 2 | 54317043551 | $1.83 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M6X14-8.8 | 6 | 07119906172 | Shop at ECS Tuning | |||||
| 11 | Trim ring | 1 | 54317051491 | $2.95 | Shop at ECS Tuning | |||||
| 12 | Handle | 1 | 54318163672 | $25.21 | Shop at ECS Tuning | |||||
| 13 | Headlining cloth | ANTHRAZIT | 1 | 54318229821 | $735.00 | Shop at ECS Tuning | ||||
| 14 | Fillister-head screw | M4X27 | 1 | 54318183750 | $4.88 | Shop at ECS Tuning | ||||
| 15 | Stopper | SCHWARZ | 2 | 54348228951 | $5.12 | Shop at ECS Tuning | ||||
| 16 | Base plate left | 1 | 54318204285 | $118.64 | Shop at ECS Tuning | |||||
| 16 | Base plate right | 1 | 54318204286 | $118.64 | Shop at ECS Tuning | |||||
| 17 | Supporting ledge | 1 | 54317043549 | $54.38 | Shop at ECS Tuning | |||||
| 18 | Adjusting screw | 2 | 54318236439 | $1.41 | Shop at ECS Tuning | |||||
| 19 | Hex nut with plate | M8-ZNS3 | 16 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 20 | Washer | 6 | 54318253827 | $2.23 | Shop at ECS Tuning | |||||
| 21 | Console left | 1 | 54318229815 | $113.20 | Shop at ECS Tuning | |||||
| 21 | Console right | 1 | 54318229816 | $113.20 | Shop at ECS Tuning | |||||
| 22 | Hollow bolt | 6 | 54318253828 | $7.54 | Shop at ECS Tuning | |||||
| 23 | Covering center | 1 | 54318263821 | $11.89 | Shop at ECS Tuning | |||||
| 24 | Microswitch | 1 | 54318254273 | $66.15 | Shop at ECS Tuning | |||||
| 25 | Set of clips for headliner | 1 | 54347181006 | $3.26 | Shop at ECS Tuning | |||||
