Electro-hydraulic folding top parts for BMW 3 Series E46 323Ci (2000)

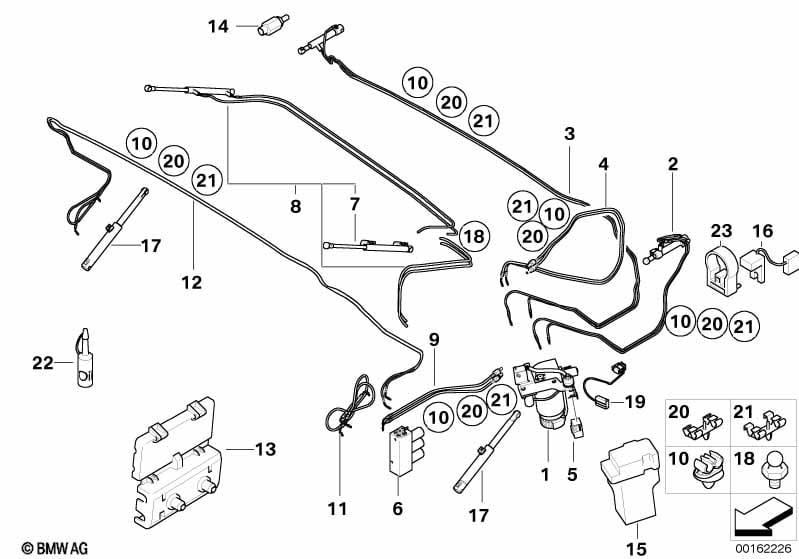

This Electro-hydraulic folding top parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| On vehicles built before 09/01, the soft top module must be re-encoded after replacing the hydraulic unit |
||||||||||
| 01 | Hydro unit | 1 | 09/2001 | 54347025595 | $1042.42 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adapter wire f drive hydraulics | 1 | 09/2001 | 54347076030 | $17.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Left hydraulic cylinder, soft-top lid | 1 | 54348243269 | $245.94 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right hydraulic cylinder, soft-top lid | 1 | 54348236956 | $245.94 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose | LÄNGE 1005MM | 1 | 54347025601 | $198.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 06 | Control unit | 1 | 54347025592 | $880.96 | ENDED | Shop at ECS Tuning | ||||
| 08 | Set of tensioner cylinder | 31;32;33;34 | 1 | 54347025600 | $1086.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Hydraulic pipe kit | 0;1; | 1 | 54347025591 | $298.51 | Shop at ECS Tuning | ||||
| 10 | Bracket, hose line | 21 | 54348242194 | $0.39 | Shop at ECS Tuning | |||||
| 11 | Hydraulic hose, master cylinder, left | 21;22 | 1 | 54347025597 | $241.76 | Shop at ECS Tuning | ||||
| 12 | Hydraulic hose, master cylinder, right | 23;24 | 1 | 54347025598 | $231.63 | ENDED | Shop at ECS Tuning | |||
| 13 | Bracket hydraulic pump | 1 | 54348263217 | $4.42 | Shop at ECS Tuning | |||||
| 14 | Quick-release coupling | 1 | 54347032914 | $104.92 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound insulation | 1 | 54347027560 | $76.16 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hall sensor | 1 | 54347043558 | $42.79 | ENDED | Shop at ECS Tuning | ||||
| 17 | Master cylinder | 2 | 54347025593 | $325.43 | ENDED | Shop at ECS Tuning | ||||
| 18 | Ball pin | 1 | 54317045701 | $4.74 | Shop at ECS Tuning | |||||
| 19 | Adapter wire f drive hydraulics | 1 | 54347076030 | $17.98 | ENDED | Shop at ECS Tuning | ||||
| 20 | Bracket, hose line | 10 | 54348268996 | $2.09 | Shop at ECS Tuning | |||||
| 21 | Bracket, hose line | 4 | 54347053420 | $1.84 | Shop at ECS Tuning | |||||
| 22 | Hydraulic fluid for convertible/hatches | 250ML | 1 | 54340394395 | $32.62 | Shop at ECS Tuning | ||||
| 23 | Bracket, Hall sensor | 1 | 54347042482 | $16.33 | ENDED | Shop at ECS Tuning | ||||
