Rollover bar for BMW Z8 E52 Z8 (2003)

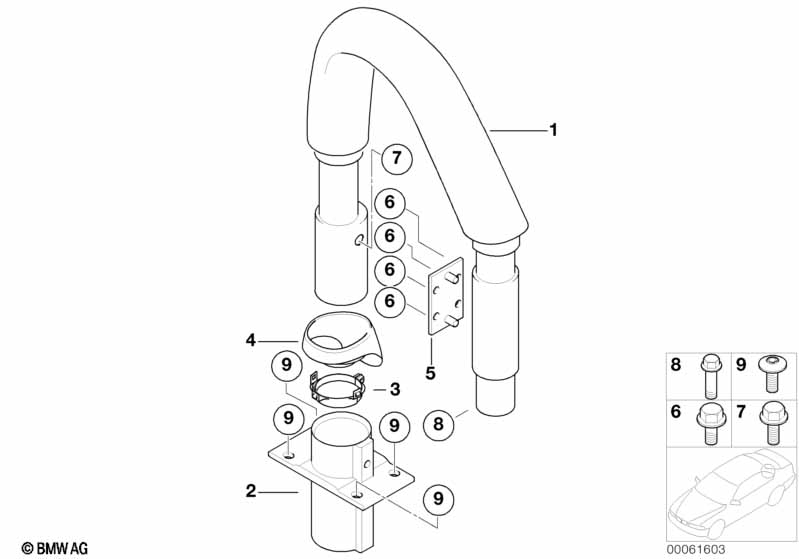

This Rollover bar technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bar left | SCHWARZ | 1 | 54617001419 | $651.53 | +core | Shop at ECS Tuning | |||
| 01 | Bar right | SCHWARZ | 1 | 54617001420 | $651.53 | +core | Shop at ECS Tuning | |||
| 01 | Bar left | CREMA | 1 | 54617001421 | $651.53 | +core | Shop at ECS Tuning | |||
| 01 | Bar right | CREMA | 1 | 54617001422 | $651.53 | +core | Shop at ECS Tuning | |||
| 01 | Bar left | SPORTROT | 1 | 54617001429 | $611.01 | +core | Shop at ECS Tuning | |||
| 01 | Bar right | SPORTROT | 1 | 54617001430 | $651.53 | +core | Shop at ECS Tuning | |||
| 02 | Console | 2 | 54618234287 | $148.48 | +core | Shop at ECS Tuning | ||||
| 03 | Bracket inerior left | 1 | 54617009119 | $22.83 | Shop at ECS Tuning | |||||
| 03 | Bracket inerior right | 1 | 54617009120 | $22.83 | Shop at ECS Tuning | |||||
| 03 | Bracket exterior left | 1 | 54617009121 | $22.83 | Shop at ECS Tuning | |||||
| 03 | Bracket exterior right | 1 | 54617009122 | $22.83 | Shop at ECS Tuning | |||||
| 04 | Covering inner left | 1 | 54618259477 | $19.51 | Shop at ECS Tuning | |||||
| 04 | Covering inner right | 1 | 54618259478 | $19.51 | Shop at ECS Tuning | |||||
| 04 | Cover panel outer left | 1 | 54618259479 | $19.51 | Shop at ECS Tuning | |||||
| 04 | Cover panel outer right | 1 | 54618259480 | $19.51 | Shop at ECS Tuning | |||||
| 05 | Mounting plate | 2 | 54618259481 | $9.95 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X16 Z1 | 4 | 07119915043 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X75 | 2 | 07119901677 | $6.92 | Shop at ECS Tuning | ||||
| 09 | Torx screw | M8X25 | 8 | 54617026023 | $0.45 | Shop at ECS Tuning |
