Lift-up-and-slide-back sunroof for BMW 5 Series E60 530i (2023)

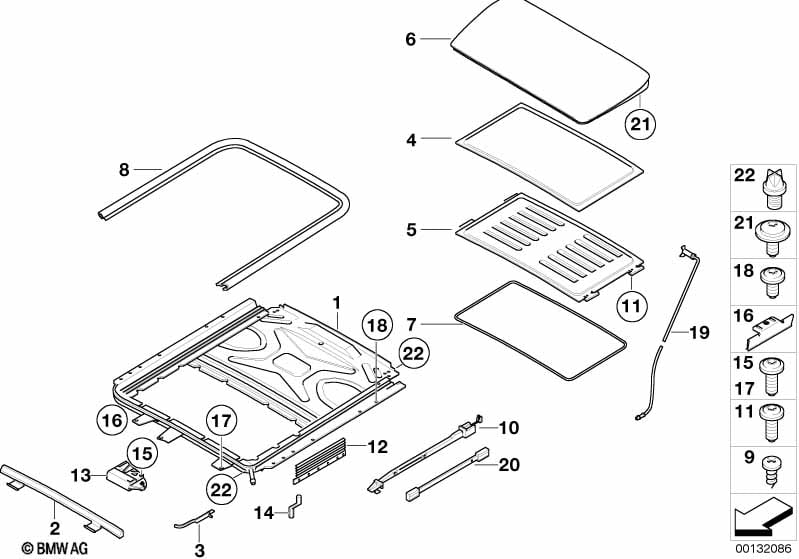

This Lift-up-and-slide-back sunroof technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Sliding roof frame | 1 | 54137033544 | $1069.59 | Shop at ECS Tuning | |||||
| 02 | Slipstream deflector | 1 | 12/2006 | 54137198594 | Shop at ECS Tuning | |||||
| 03 | Repair kit f draft deflector lever | 1 | 54107132930 | $14.10 | Shop at ECS Tuning | |||||
| 04 | Cover frame | 1 | 54137033531 | $25.95 | Shop at ECS Tuning | |||||
| 05 | Sliding headliner | HIMMELGRAU | 1 | 54137195628 | $262.05 | Shop at ECS Tuning | ||||
| 05 | Sliding headliner | BEIGE | 1 | 54137195629 | $262.05 | Shop at ECS Tuning | ||||
| 05 | Sliding headliner | CREAMBEIGE DKL | 1 | 54137195631 | $262.05 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 05 | Sliding headliner | ANTHRAZIT | 1 | 54137195630 | $262.05 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 06 | Glass cover | 1 | 54137033533 | $502.57 | Shop at ECS Tuning | |||||
| 07 | Surrounding seal | L=2883 | 1 | 12/2008 | 54107245551 | $30.68 | Shop at ECS Tuning | |||
| 08 | Seal, sunroof | 1 | 54137069632 | $57.66 | Shop at ECS Tuning | |||||
| 09 | Csk.lenshead screw | X | 07147110450 | $0.12 | Shop at ECS Tuning | |||||
| 10 | Mechanism, sliding roof | 2 | 54107198136 | $38.18 | Shop at ECS Tuning | |||||
| 11 | Collar screw | M5X7,3-8.8 | 4 | 07147132783 | $1.15 | Shop at ECS Tuning | ||||
| 12 | Left rubber boot | 1 | 54107198134 | $16.42 | Shop at ECS Tuning | |||||
| 12 | Right rubber boot | 1 | 54107198135 | $16.42 | Shop at ECS Tuning | |||||
| 13 | Drive unit, sunroof | 1 | 67619137056 | $316.19 | Shop at ECS Tuning | |||||
| 14 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | M5X28 | 3 | 07147132782 | $1.25 | Shop at ECS Tuning | ||||
| 16 | Bracket for sliding lifting roof frame | 4 | 07147147142 | $0.75 | Shop at ECS Tuning | |||||
| 17 | Screw | M6X25,5 | 4 | 07147131048 | $1.25 | Shop at ECS Tuning | ||||
| 17 | Replacement screw | M6X25,5 | 4 | 07147131050 | $1.25 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X10,5 | 10 | 07147131047 | $1.05 | Shop at ECS Tuning | ||||
| 18 | Replacement screw | M6X10,5 | 10 | 07147131049 | $0.80 | Shop at ECS Tuning | ||||
| 19 | Water outlet hose front | 1049 MM | 2 | 41217039231 | $22.70 | Shop at ECS Tuning | ||||
| 19 | Water outlet hose rear | 691 MM | 2 | 41217039233 | $22.70 | Shop at ECS Tuning | ||||
| 19 | Water outlet hose | L=155 | 2 | 41317175927 | $10.13 | Shop at ECS Tuning | ||||
| 20 | Spacer holder | 2 | 54107193641 | $11.44 | Shop at ECS Tuning | |||||
| 21 | Fillister head screw | M5X16 | 6 | 07147132784 | $1.09 | Shop at ECS Tuning | ||||
| 22 | Water outlet valve | 1 | 54137060976 | $2.98 | Shop at ECS Tuning | |||||
