Roll-over protection system for BMW 6 Series E64 LCI 650i (2010)

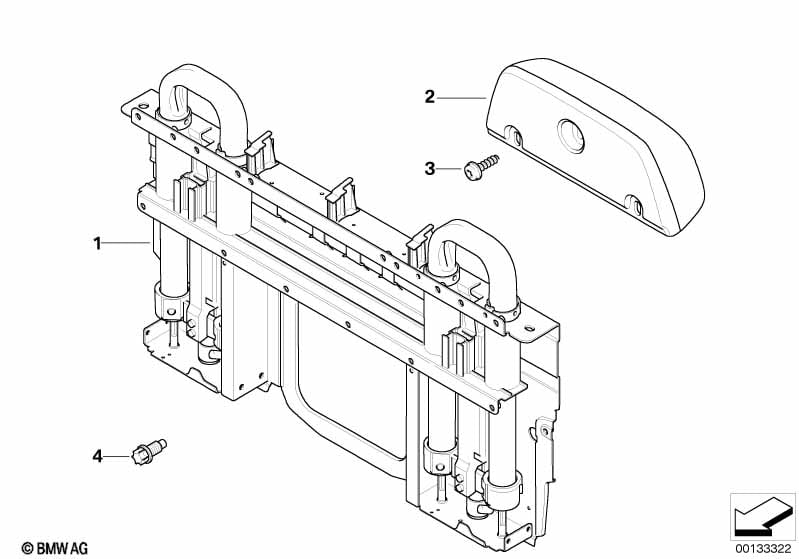

This Roll-over protection system technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rollover protection | 1 | 09/2005 | 54627181074 | $912.74 | +core | Shop at ECS Tuning | |||
| 02 | Trim panel | SCHWARZ | 2 | 54627111550 | $60.24 | Shop at ECS Tuning | ||||
| 02 | Trim panel | CHATEAU | 2 | 54627127363 | $60.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel | CREAMBEIGE | 2 | 54627127364 | $60.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel | SCHILF | 2 | 54627127365 | $60.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel | SATTELBRAUN | 2 | 54627182970 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | M5X18,5 | 6 | 51417060988 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Torx-bolt with washer | ASA M8X22 | 16 | 07147248303 | $0.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 LCI 650i Roll-over protection system?
- This technical diagram illustrates the Roll-over protection system within the Sliding Roof / Folding Top group for the 6 Series E64 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Rollover protection (Part #54627181074).
- Which models use the hardware listed in this Roll-over protection system?
- The hardware and components featured in the Roll-over protection system are specific to the 6 Series E64 LCI 650i produced during 2010. These technical specifications ensure that parts like the Rollover protection (54627181074) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roll-over protection system assembly?
- Each item in the Roll-over protection system corresponds to the numbered list below the illustration. For the 6 Series E64 LCI 650i, you can identify the Rollover protection by locating its position on the schematic, which then links to the official BMW part number 54627181074 for the Sliding Roof / Folding Top section.
