Panoramic roof, manual for BMW 5 Series E61 545i (2005)

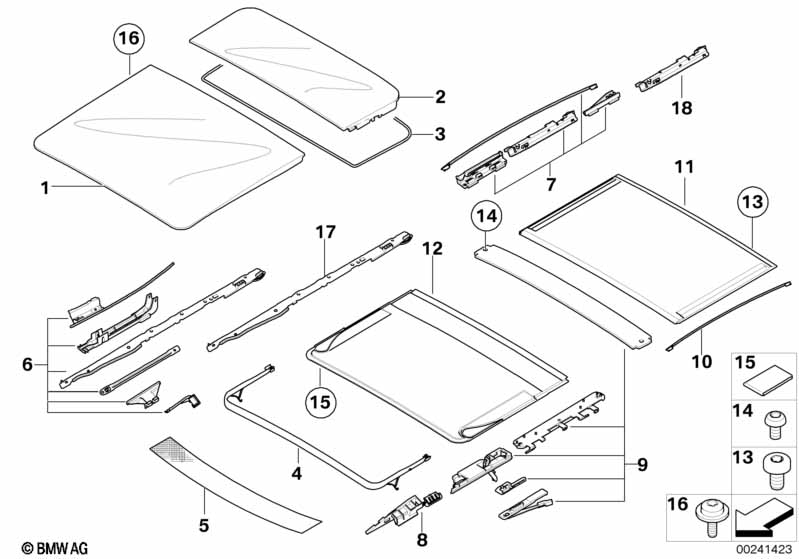

This Panoramic roof, manual technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| 01 | Glass cover, front | 1 | 54137140777 | $552.83 | Shop at ECS Tuning | |||||
| 02 | Glass cover, rear | 1 | 54137140778 | $387.00 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear sliding/lifting roof cover gasket | 2 | 54137127565 | $17.93 | Shop at ECS Tuning | |||||
| up to TLL 489 | ||||||||||
| 04 | Slipstream deflector | 1 | 09/2008 | 54107198982 | $124.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Net wind deflector | 1 | 09/2008 | 54107198983 | $48.67 | Shop at ECS Tuning | ||||
| 06 | Mechanism glass cover, front | 1 | 54137118849 | $245.21 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Special Grease RHF 1 | 20G | 1 | 83192157321 | Shop at ECS Tuning | |||||
| 07 | Mechanism glass cover, rear | 1 | 54107227894 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Special Grease RHF 1 | 20G | 1 | 83192157321 | Shop at ECS Tuning | |||||
| up to TLL 488 | ||||||||||
| 08 | Mechanical parts, wind deflector | 1 | 09/2008 | 54107296961 | Shop at ECS Tuning | |||||
| 09 | Mechanism for floating headliner, front | 1 | 54107198619 | $42.05 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Special Grease RHF 1 | 20G | 1 | 83192157321 | Shop at ECS Tuning | |||||
| 10 | Mechanism for floating headliner, front | 1 | 54107198619 | $42.05 | Shop at ECS Tuning | |||||
| 11 | Supended headliner, rear | GRAU | 1 | 54137140782 | $258.13 | Shop at ECS Tuning | ||||
| 11 | Supended headliner, rear | BEIGE | 1 | 54137140783 | $258.13 | Shop at ECS Tuning | ||||
| 11 | Supended headliner, rear | CREAMBEIGE | 1 | 54137192973 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 11 | Supended headliner, rear | ANTHRAZIT | 1 | 54137918578 | $258.13 | Shop at ECS Tuning | ||||
| 12 | Supended headliner, front | GRAU | 1 | 54137140780 | $224.95 | Shop at ECS Tuning | ||||
| 12 | Supended headliner, front | BEIGE | 1 | 54137140781 | $224.95 | Shop at ECS Tuning | ||||
| 12 | Supended headliner, front | CREAMBEIGE | 1 | 54137192972 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 12 | Supended headliner, front | ANTHRAZIT | 1 | 54137918576 | $224.95 | Shop at ECS Tuning | ||||
| 13 | Set of screws for floating headliner | M4X4 | 1 | 54107199476 | $1.03 | Shop at ECS Tuning | ||||
| 14 | Screw | 20X6 | 2 | 54107198614 | $0.98 | Shop at ECS Tuning | ||||
| 15 | Sliding parts, suspended headliner, rear | 1 | 54137155683 | $11.33 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Special Grease RHF 1 | 20G | 1 | 83192157321 | Shop at ECS Tuning | |||||
| 16 | Oval-head screw with washer | M5X11 | X | 54137154519 | $3.51 | Shop at ECS Tuning | ||||
| 17 | Gate, front | 1 | 54107306685 | Shop at ECS Tuning | ||||||
| 18 | Gate, rear | 1 | 54107297323 | Shop at ECS Tuning | ||||||
