Rollover protection system for BMW 3 Series E93 335i (2010)

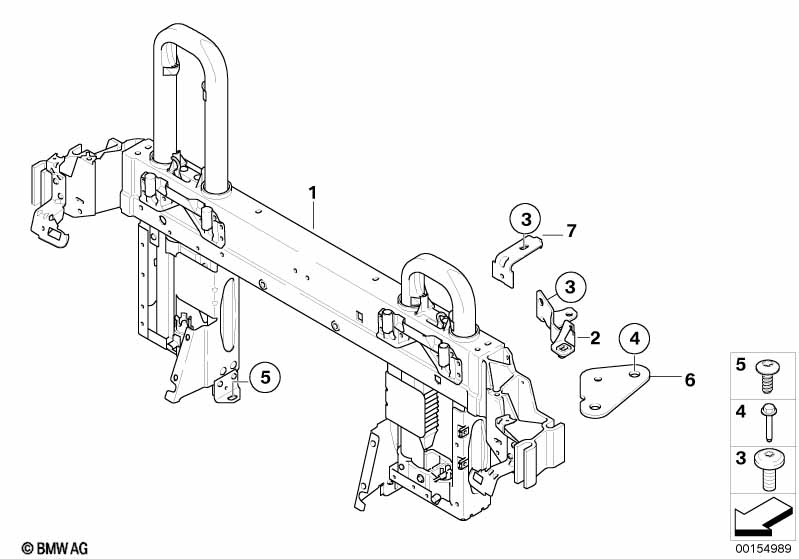

This Rollover protection system technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Cover for rollover bar Refer to ITU 51_6575 Trim, bodywork, inside |
|||||||||
| 01 | Rollover protection | 1 | 03/2008 | 54627140906 | $1196.66 | Shop at ECS Tuning | ||||
| 02 | Bracket for trim grill, left | 1 | 54627172047 | $8.22 | Shop at ECS Tuning | |||||
| 02 | Bracket for trim grill, right | 1 | 54627172048 | $8.22 | Shop at ECS Tuning | |||||
| 03 | Torx screw with washer | ISA M6X17 | 4 | 07146986927 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Allen screw with self-centering tip | 4 | 07147187917 | $3.35 | Shop at ECS Tuning | |||||
| 05 | Torx-bolt with washer | ISA M8X20 | 2 | 07147026396 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Mounting plate left | 1 | 54627165101 | $5.69 | Shop at ECS Tuning | |||||
| 06 | Mounting plate right | 1 | 54627165102 | $5.13 | Shop at ECS Tuning | |||||
| 07 | Bracket, trim grill, center | 4 | 54627184167 | $2.59 | Shop at ECS Tuning | |||||
