Wind deflector for BMW 3 Series E46 330Ci (2006)

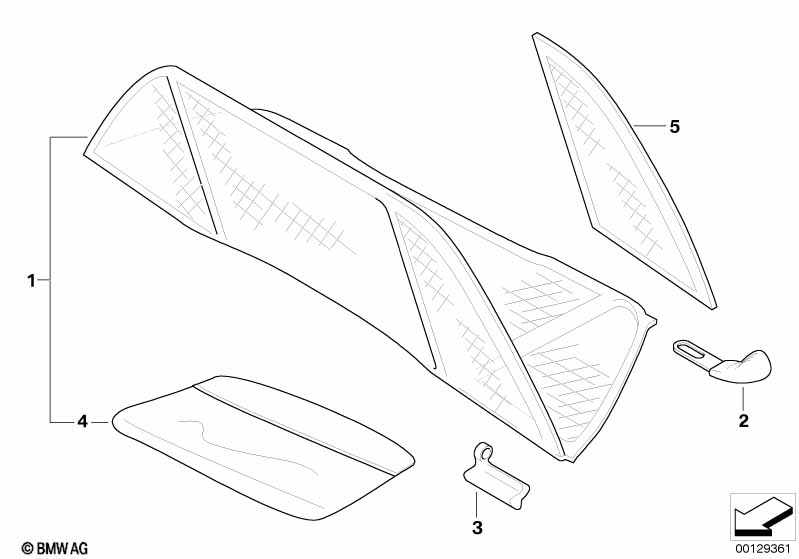

This Wind deflector technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wind deflector | 1 | 54317037729 | $476.95 | Shop at ECS Tuning | |||||
| 02 | Supporting plate | LINKS | 1 | 54317037389 | $30.84 | Shop at ECS Tuning | ||||
| 02 | Supporting plate | RECHTS | 1 | 54317037390 | $30.84 | Shop at ECS Tuning | ||||
| 03 | Handle left | 1 | 54317037391 | $28.00 | Shop at ECS Tuning | |||||
| 03 | Handle right | 1 | 54317037392 | $28.00 | Shop at ECS Tuning | |||||
| 04 | Pocket, wind deflector | 1 | 54347269435 | Shop at ECS Tuning | ||||||
| 05 | Wind deflector, left | 1 | 54317141835 | $107.95 | Shop at ECS Tuning | |||||
| 05 | Wind deflector, right | 1 | 54317141836 | $107.95 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Wind deflector?
- This technical diagram illustrates the Wind deflector within the Sliding Roof / Folding Top group for the 3 Series E46 330Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Wind deflector (Part #54317037729).
- Which models use the hardware listed in this Wind deflector?
- The hardware and components featured in the Wind deflector are specific to the 3 Series E46 330Ci produced during 2006. These technical specifications ensure that parts like the Wind deflector (54317037729) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wind deflector assembly?
- Each item in the Wind deflector corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Wind deflector by locating its position on the schematic, which then links to the official BMW part number 54317037729 for the Sliding Roof / Folding Top section.
