Folding top mounting parts for BMW 1 Series E88 135i (2010)

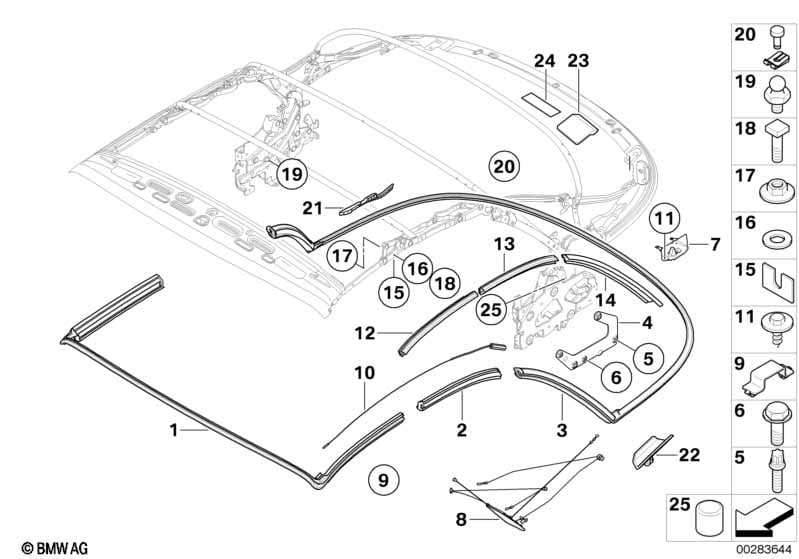

This Folding top mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cowl gasket | 1 | 54347174784 | $137.36 | Shop at ECS Tuning | |||||
| 02 | Left centre window guide | 1 | 54347174775 | $60.02 | Shop at ECS Tuning | |||||
| 02 | Right centre window guide | 1 | 54347174776 | $60.02 | Shop at ECS Tuning | |||||
| 03 | Window guide, rear | 1 | 54347174800 | $140.16 | Shop at ECS Tuning | |||||
| 04 | Supporting plate left | 1 | 54347166239 | $18.96 | Shop at ECS Tuning | |||||
| 04 | Supporting plate right | 1 | 54347166240 | $18.96 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M10X25 | 6 | 07129905085 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X20- 8.8-ZNS3 | 4 | 07119906119 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Support for brace, left | 1 | 54347187639 | $6.67 | Shop at ECS Tuning | |||||
| 07 | Support for brace, right | 1 | 54347187640 | $6.67 | Shop at ECS Tuning | |||||
| 08 | Tensioning straps headliner | 1 | 54347190761 | $5.74 | Shop at ECS Tuning | |||||
| 09 | Cable duct | 1 | 54347190733 | $2.24 | Shop at ECS Tuning | |||||
| 10 | Tension cable for convertible top | 2 | 54347190755 | $11.44 | Shop at ECS Tuning | |||||
| 11 | Hex head screw with washer | ST4,8X16MM | 4 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Roof frame, front left | 1 | 54347219107 | $17.16 | Shop at ECS Tuning | |||||
| 12 | Roof frame, front right | 1 | 54347219108 | $19.00 | Shop at ECS Tuning | |||||
| 13 | Roof frame, center, left | 1 | 54347219109 | $17.16 | Shop at ECS Tuning | |||||
| 13 | Roof frame, center, right | 1 | 54347219110 | $19.00 | Shop at ECS Tuning | |||||
| 14 | Roof frame, rear left | 1 | 54347219111 | $28.57 | Shop at ECS Tuning | |||||
| 14 | Roof frame, rear right | 1 | 54347219112 | $28.57 | Shop at ECS Tuning | |||||
| 15 | Spacer plate | 0,5 MM | X | 54347219101 | $1.91 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 1 MM | X | 54347219102 | $1.91 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 2 MM | X | 54347219103 | $1.91 | Shop at ECS Tuning | ||||
| 16 | Shim 0.5 | X | 54347219104 | $1.91 | Shop at ECS Tuning | |||||
| 16 | Shim 1.0 | X | 54347219105 | $1.91 | Shop at ECS Tuning | |||||
| 16 | Shim 2.0 | X | 54347219106 | $1.91 | Shop at ECS Tuning | |||||
| 17 | Square headed bolt | M5X21 | 12 | 54347219113 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Square headed bolt | M5 | 12 | 54347219114 | $0.57 | Shop at ECS Tuning | ||||
| 19 | Ball pin spring | M6 | 2 | 07147264171 | Shop at ECS Tuning | |||||
| 19 | Ball pin, hydraulic cylinder | 2 | 54347190719 | $7.64 | Shop at ECS Tuning | |||||
| 20 | Stud, master cylinder | 2 | 54347219098 | $9.51 | Shop at ECS Tuning | |||||
| 21 | Deflector, left | 1 | 54347219099 | $10.52 | Shop at ECS Tuning | |||||
| 21 | Deflector, right | 1 | 54347219100 | $11.44 | Shop at ECS Tuning | |||||
| 22 | Insert, seal, brace | 2 | 54347208681 | $0.89 | Shop at ECS Tuning | |||||
| 23 | Left base | 1 | 54347219119 | ENDED | Shop at ECS Tuning | |||||
| 23 | Right base | 1 | 54347219120 | ENDED | Shop at ECS Tuning | |||||
| 24 | Felt strip, self-adhesive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning | ||||
| 25 | Cap | 2 | 54347219122 | $1.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
