Folding top compartment for BMW 1 Series E88 120d (2013)

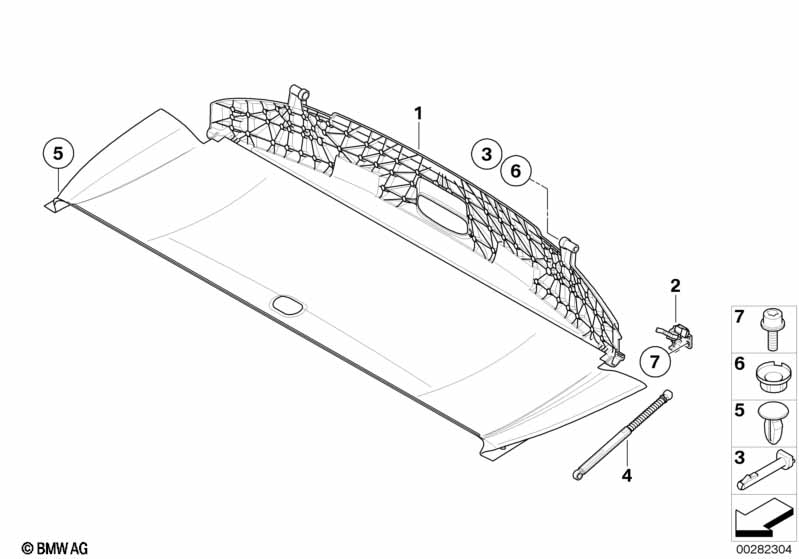

This Folding top compartment technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding top compartment | 1 | 54347181953 | $181.25 | Shop at ECS Tuning | |||||
| 02 | Bracket micro switch | 1 | 54347186769 | $15.31 | Shop at ECS Tuning | |||||
| 03 | Pin | 2 | 54347186794 | $1.72 | Shop at ECS Tuning | |||||
| 04 | Spring | 2 | 54347186770 | $15.31 | Shop at ECS Tuning | |||||
| 05 | Clip | 16 | 54347203393 | Shop at ECS Tuning | ||||||
| 06 | Guide bush | 2 | 54347186797 | $6.67 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M6X14 | 1 | 07129903027 | $1.20 | Shop at ECS Tuning |
