Electric panoramic roof for BMW 3 Series F31 316d (2015)

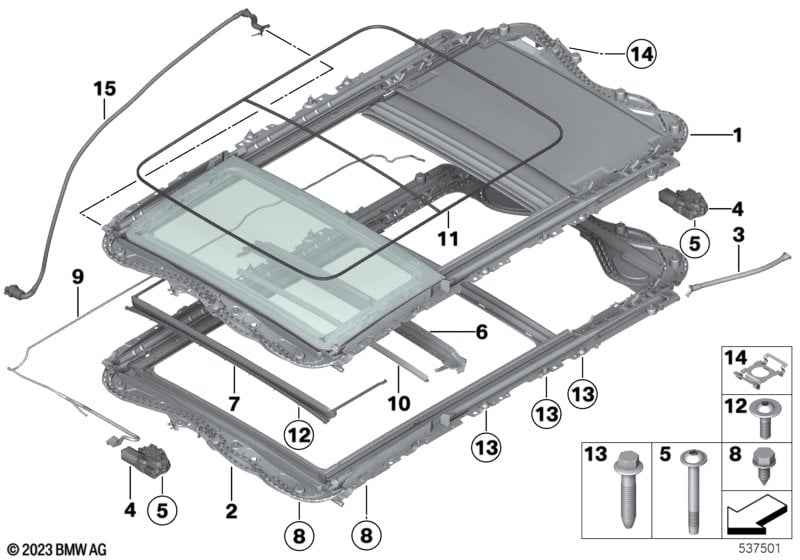

This Electric panoramic roof technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 316d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Panoramic glass roof, electric | ANTHRAZIT | 1 | 54107342869 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/anthracite or Fabric/leather Breeze/oyster/black or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' sattelbraun/br. accents or Leather 'Dakota' sattelbraun/br. accents or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/black/Accent oyster dark or Leather Dakota/black/contrast blue or Leather Dakota/oyster/Accent oyster dark |
CBAT=Yes CBOP=Yes KCDF=Yes LCDF=Yes LCDJ=Yes LCDY=Yes LCFJ=Yes LCL8=Yes LCNL=Yes LCOM=Yes |
|||||||||
| 01 | Panoramic glass roof, electric | OYSTER | 1 | 54107342868 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Move/amber or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
BDAT=Yes BDLI=Yes BEL1=Yes BEL2=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Panoramic glass roof, electric | EVERESTGRAU | 1 | 54107342867 | Shop at ECS Tuning | |||||
| 02 | Panorama roof frame | 1 | 54107342854 | Shop at ECS Tuning | ||||||
| 03 | Water outlet hose rear | 2 | 54107248765 | Shop at ECS Tuning | ||||||
| 04 | Drive unit for sunroof | 2 | 67617316535 | Shop at ECS Tuning | ||||||
| 05 | screw for plastic | K50X35 | 1 | 10/2014 | 54107431166 | Shop at ECS Tuning | ||||
| 06 | Rain gutter | 1 | 54107342851 | Shop at ECS Tuning | ||||||
| 07 | Slipstream deflector | 1 | 54107342848 | Shop at ECS Tuning | ||||||
| 08 | Screw self-tapping | M6X14,5 | 14 | 11148570144 | Shop at ECS Tuning | |||||
| 09 | Roof cable harness | 1 | 54107342843 | Shop at ECS Tuning | ||||||
| 10 | Rain gutter seal | 1 | 54107342850 | Shop at ECS Tuning | ||||||
| 11 | Surrounding seal | L=4300 | 1 | 54107430946 | Shop at ECS Tuning | |||||
| 12 | Plastic bolt | SATZ | 1 | 54107342847 | Shop at ECS Tuning | |||||
| Set consists of 6 x part number 7310340 | ||||||||||
| 13 | Hex bolt | SATZ M6X30 | 1 | 07147310340 | Shop at ECS Tuning | |||||
| 14 | Insert wiring conduit | 1 | 54107361859 | Shop at ECS Tuning | ||||||
| 15 | Water outlet hose front | 2 | 41007276714 | Shop at ECS Tuning | ||||||
