Roof shells for BMW 4 Series F83 M4 M4 (2017)

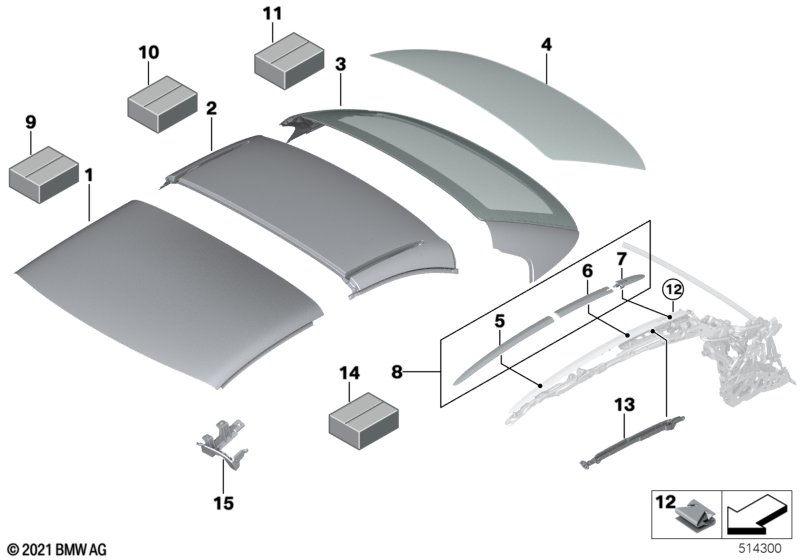

This Roof shells technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof tray, front | 1 | 41007400554 | Shop at ECS Tuning | ||||||
| 02 | Roof tray, center | 1 | 41007400555 | Shop at ECS Tuning | ||||||
| 03 | Roof tray, rear | 1 | 41007400556 | Shop at ECS Tuning | ||||||
| 04 | Heated rear window | 1 | 54347128754 | $816.52 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rubber buffer | 4 | 54347166771 | $0.44 | Shop at ECS Tuning | |||||
| 05 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 06 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 06 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 07 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 07 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 08 | Set of roof trim strips primed | 1 | 54375A19AA4 | Shop at ECS Tuning | ||||||
| 09 | Mounting set for roof tray | 1 | 54377183307 | $18.22 | Shop at ECS Tuning | |||||
| 10 | Mounting kit, roof tray, center | 1 | 54377183308 | $31.72 | Shop at ECS Tuning | |||||
| 11 | Mounting set for roof tray | 1 | 54377183307 | $18.22 | Shop at ECS Tuning | |||||
| 12 | Mounting clip | 2 | 54377187746 | $4.24 | Shop at ECS Tuning | |||||
| 13 | Set of hinges | 1 | 54375A19AA3 | Shop at ECS Tuning | ||||||
| 13 | Set of hinges | 1 | 54375A19AA3 | Shop at ECS Tuning | ||||||
| 13 | Set of hinges | 1 | 54375A19AA3 | Shop at ECS Tuning | ||||||
| 14 | Mounting kit, roof rail | 1 | 54377187747 | $7.00 | Shop at ECS Tuning | |||||
| 15 | Mount, headliner, left | 1 | 54377145593 | $2.54 | ENDED | Shop at ECS Tuning | ||||
| 15 | Headliner roof shell front | SCHWARZ | 1 | 54377313150 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
