Panorama roof mounting parts for BMW 2 Series F46 Gran Tourer LCI 218d (2018)

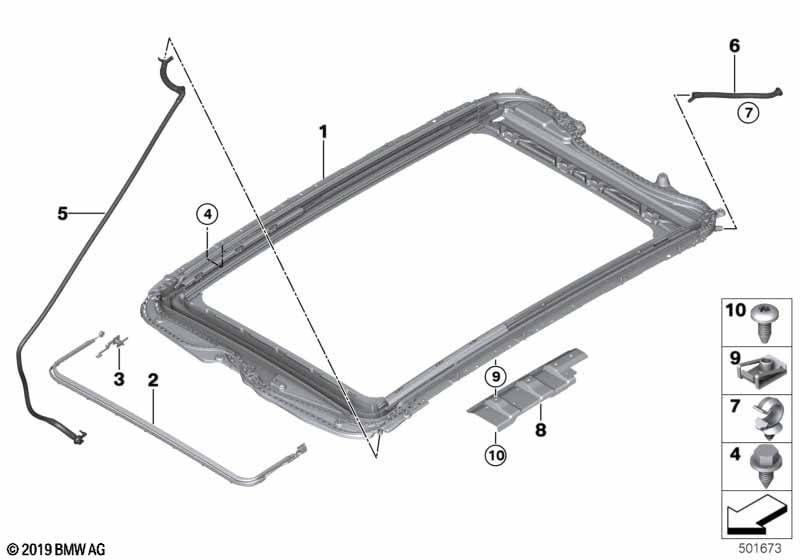

This Panorama roof mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| 01 | Sliding roof frame | 1 | 54107391793 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 02 | Slipstream deflector | 1 | 54107391791 | Shop at ECS Tuning | ||||||
| 03 | Joint, wind deflector | 1 | 54107391792 | Shop at ECS Tuning | ||||||
| 04 | Replacement screw | ST-6,8X12,5 | 18 | 07149143635 | $2.62 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | M6X14,5 | 18 | 11148570144 | Shop at ECS Tuning | |||||
| 05 | Water outlet hose front | 2 | 41007323193 | Shop at ECS Tuning | ||||||
| 06 | Water outlet hose rear | 2 | 54107323195 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 218d Panorama roof mounting parts?
- This technical diagram illustrates the Panorama roof mounting parts within the Sliding Roof / Folding Top group for the 2 Series F46 Gran Tourer LCI 218d produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Sliding roof frame (Part #54107391793).
- Which models use the hardware listed in this Panorama roof mounting parts?
- The hardware and components featured in the Panorama roof mounting parts are specific to the 2 Series F46 Gran Tourer LCI 218d produced during 2018. These technical specifications ensure that parts like the Sliding roof frame (54107391793) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama roof mounting parts assembly?
- Each item in the Panorama roof mounting parts corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 218d, you can identify the Sliding roof frame by locating its position on the schematic, which then links to the official BMW part number 54107391793 for the Sliding Roof / Folding Top section.
