Folding-top, hydraulic for BMW 2 Series F23 LCI 220i (2021)

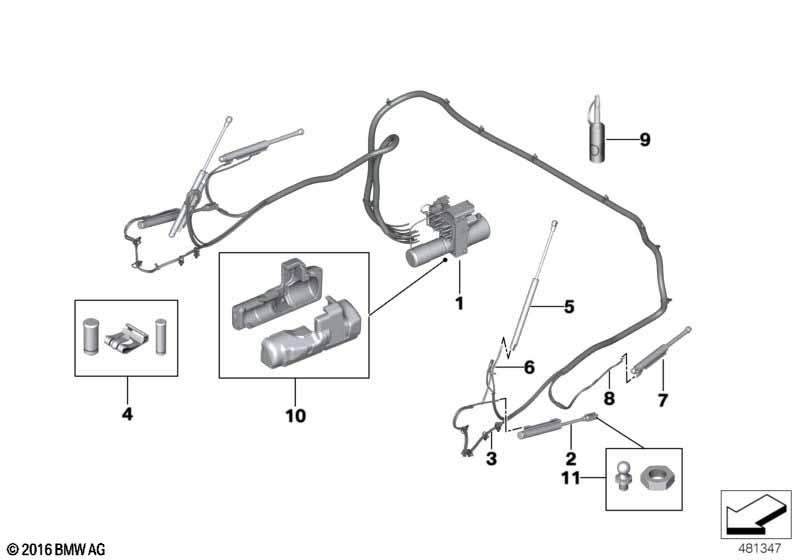

This Folding-top, hydraulic technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | hydraulic pump | 1 | 54347421753 | Shop at ECS Tuning | ||||||
| 02 | Hydraulic cylinder main bearing, left | 1 | 54347421755 | Shop at ECS Tuning | ||||||
| 02 | Hydraulic cylinder main bearing, right | 1 | 54347421756 | Shop at ECS Tuning | ||||||
| 03 | Hydraulic line, master cylinder, left | 1 | 54347421757 | Shop at ECS Tuning | ||||||
| 03 | Hydraulic line, master cylinder, right | 1 | 54347421758 | Shop at ECS Tuning | ||||||
| 04 | Mounting kit for hydraulic cylinder | 2 | 54347421754 | Shop at ECS Tuning | ||||||
| 05 | Hydraulic cylinder, tensioning rod left | 1 | 54347421759 | Shop at ECS Tuning | ||||||
| 05 | Hydraulic cylinder, tensioning rod right | 1 | 54347421760 | Shop at ECS Tuning | ||||||
| 06 | Hydraulic line, tensioning rod, left | 1 | 54347421761 | Shop at ECS Tuning | ||||||
| 06 | Hydraulic line, tensioning rod, right | 1 | 54347421762 | Shop at ECS Tuning | ||||||
| 07 | Hydraulic cylinder linkage module, left | 1 | 54347421825 | Shop at ECS Tuning | ||||||
| 07 | Hydraulic cylinder linkage module, right | 1 | 54347421826 | Shop at ECS Tuning | ||||||
| 08 | Hydraulic line, linkage module, left | 1 | 54347421827 | Shop at ECS Tuning | ||||||
| 08 | Hydraulic line, linkage module, right | 1 | 54347421828 | Shop at ECS Tuning | ||||||
| 09 | Hydraulic fluid for convertible/hatches | 250ML | X | 54340394395 | $32.62 | Shop at ECS Tuning | ||||
| 10 | Sound insulation | 1 | 54347167911 | $133.49 | Shop at ECS Tuning | |||||
| 11 | Set of ball pins | 2 | 54347459864 | Shop at ECS Tuning |
