Rollover protection system for BMW 2 Series F23 LCI 225d (2019)

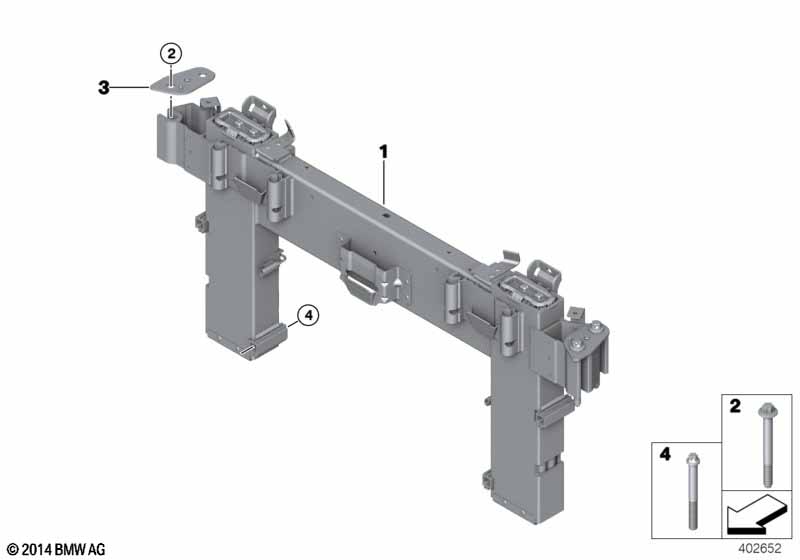

This Rollover protection system technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 225d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Rollover protection system | 1 | 54627321646 | Shop at ECS Tuning | ||||||
| For vehicles with Through-loading system |
S465A=No |
|||||||||
| 01 | Rollover protection system | 1 | 54627306997 | Shop at ECS Tuning | ||||||
| 02 | Star-socket screw | M12X1,5 | 4 | 07147426660 | Shop at ECS Tuning | |||||
| 03 | Screw plate, left | 1 | 54627307001 | Shop at ECS Tuning | ||||||
| 03 | Screw plate, right | 1 | 54627307002 | Shop at ECS Tuning | ||||||
| 04 | Star-socket screw | M10X95 | 4 | 07119908713 | Shop at ECS Tuning | |||||
