Panorama roof frame for BMW 7 Series G12 740Li (2019)

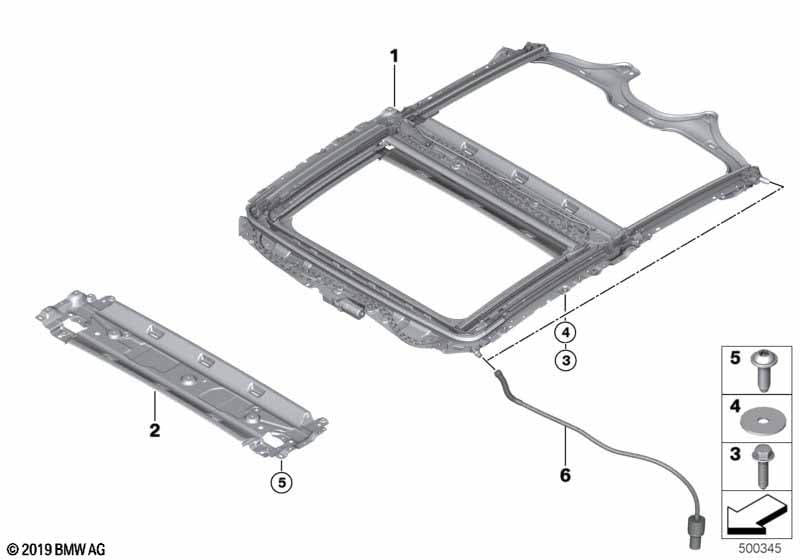

This Panorama roof frame technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof or Sky Lounge panoramic glass sunroof |
S402A=Yes S407A=Yes |
||||||||
| 01 | Panorama roof frame | 1 | 54107409145 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 02 | Cover, roller type | 1 | 54107409146 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M6X14 | 12 | 07147226126 | Shop at ECS Tuning | |||||
| 04 | Plastic washer | 5X5X0,5 | 12 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | DTS 5X16 | 11 | 54107409148 | Shop at ECS Tuning | |||||
| 06 | Water outlet hose front | 2 | 54107348404 | Shop at ECS Tuning | ||||||
| 06 | Water outlet hose rear | 2 | 54107359326 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740Li Panorama roof frame?
- This technical diagram illustrates the Panorama roof frame within the Sliding Roof / Folding Top group for the 7 Series G12 740Li produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Panorama roof frame (Part #54107409145).
- Which models use the hardware listed in this Panorama roof frame?
- The hardware and components featured in the Panorama roof frame are specific to the 7 Series G12 740Li produced during 2019. These technical specifications ensure that parts like the Panorama roof frame (54107409145) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama roof frame assembly?
- Each item in the Panorama roof frame corresponds to the numbered list below the illustration. For the 7 Series G12 740Li, you can identify the Panorama roof frame by locating its position on the schematic, which then links to the official BMW part number 54107409145 for the Sliding Roof / Folding Top section.
