Panorama glass roof glass panel for BMW 7 Series G12 740LiX (2018)

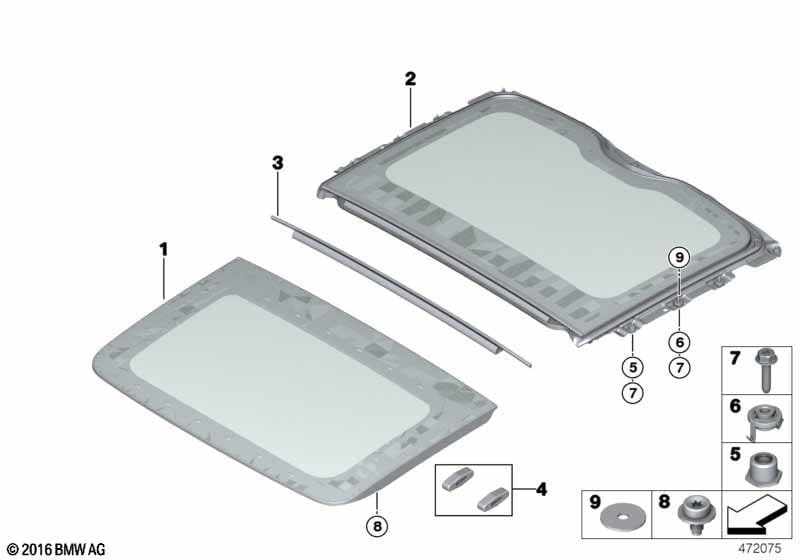

This Panorama glass roof glass panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof or Sky Lounge panoramic glass sunroof |
S402A=Yes S407A=Yes |
||||||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Glass cover, front | 1 | 54107409140 | Shop at ECS Tuning | ||||||
| For vehicles with Sky Lounge panoramic glass sunroof |
S407A=Yes |
|||||||||
| 01 | Glass panel, front, illuminated | 1 | 54107409166 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 02 | Glass cover, rear | 1 | 54107359333 | Shop at ECS Tuning | ||||||
| For vehicles with Sky Lounge panoramic glass sunroof |
S407A=Yes |
|||||||||
| 02 | Glass panel, rear, illuminated | 1 | 54107373641 | Shop at ECS Tuning | ||||||
| 03 | Gasket, glass cover, rear | 1 | 54107409139 | Shop at ECS Tuning | ||||||
| 04 | Repair kit slider mechanics front | 1 | 54107409151 | Shop at ECS Tuning | ||||||
| 05 | Adjustment element, active | 5 | 54107470060 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex bolt | M6X26 ZNS3 | 5 | 54107470098 | Shop at ECS Tuning | |||||
| 06 | Adjustment element, passive | 6 | 54107470097 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex bolt | M6X26 ZNS3 | 6 | 54107470098 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex bolt | M6X26 ZNS3 | 11 | 54107470098 | Shop at ECS Tuning | |||||
| 08 | Torx screw | M5X9 | 6 | 54107209194 | $4.22 | Shop at ECS Tuning | ||||
| 09 | Plastic washer | 5X5X0,5 | 14 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
