Folding top for BMW MINI Cabrio F57 LCI One (2020)

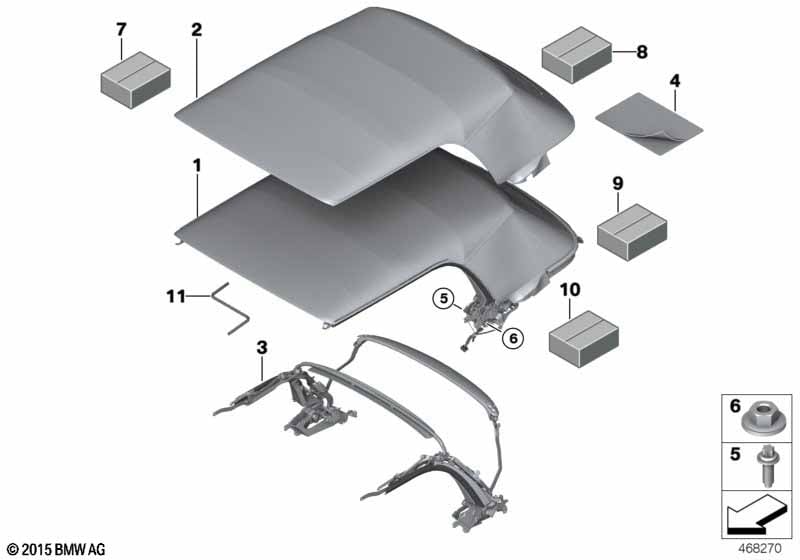

This Folding top technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Convertible top Sidewalk |
S3YHA=Yes |
|||||||||
| 01 | Folding top | ARROW | 1 | 54349477601 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours convertible top |
S3YRA=Yes |
|||||||||
| 01 | Folding top | UNION JACK | 1 | 54347361479 | Shop at ECS Tuning | |||||
| For vehicles with Convertible top Sidewalk and MINI Yours convertible top |
S3YHA=No S3YRA=No |
|||||||||
| 01 | Folding top | SCHWARZ | 1 | 54347361478 | Shop at ECS Tuning | |||||
| For vehicles with Convertible top Sidewalk |
S3YHA=Yes |
|||||||||
| 02 | Convertible top cover | ARROW | 1 | 51345A01570 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours convertible top |
S3YRA=Yes |
|||||||||
| 02 | Convertible top cover | UNION JACK | 1 | 54347364829 | Shop at ECS Tuning | |||||
| For vehicles with Convertible top Sidewalk and MINI Yours convertible top |
S3YHA=No S3YRA=No |
|||||||||
| 02 | Convertible top cover | SCHWARZ | 1 | 54347364828 | Shop at ECS Tuning | |||||
| 03 | Convertible top, frame, w/o drives | 1 | 06/2016 | 54347364797 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours convertible top |
S3YRA=Yes |
|||||||||
| 04 | Protective cloth, rear window | 1 | 54347057343 | $80.51 | ENDED | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X25 | 2 | 07147316809 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Mounting kit, convertible top fabric | 1 | 54347463734 | Shop at ECS Tuning | ||||||
| 08 | Repair kit convertible top frame | 1 | 54347463739 | Shop at ECS Tuning | ||||||
| Piece of cloth | ||||||||||
| 09 | Repair kit for convertible top fabric | 1 | 54347276922 | Shop at ECS Tuning | ||||||
| 10 | Repair kit transmission segment | 1 | 54347463744 | Shop at ECS Tuning | ||||||
| 11 | Emergency operation crank | 1 | 54107199321 | $1.30 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
