Convertible top seals for BMW MINI Cabrio F57 One (2016)

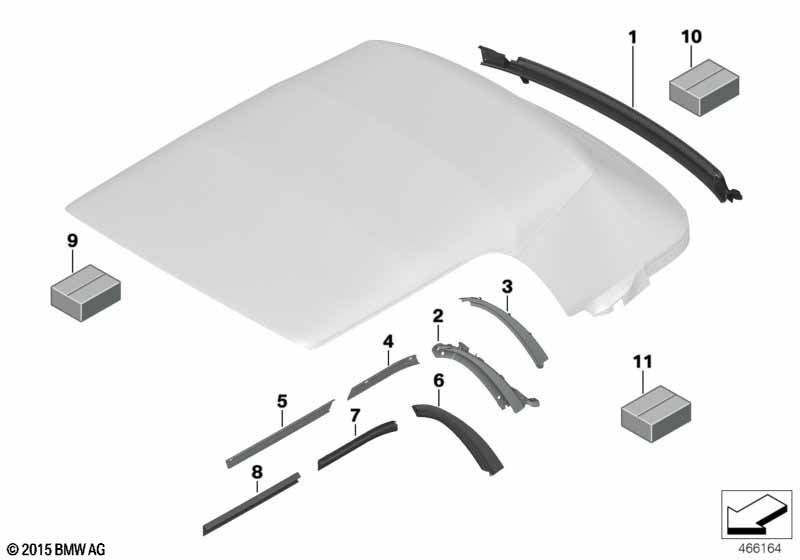

This Convertible top seals technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seal for clamp | 1 | 54347364818 | Shop at ECS Tuning | ||||||
| 02 | Main column, left | 1 | 54347375975 | Shop at ECS Tuning | ||||||
| 02 | Main column, right | 1 | 54347375976 | Shop at ECS Tuning | ||||||
| 03 | Insert seal rear left | 1 | 54342758113 | $3.86 | Shop at ECS Tuning | |||||
| 03 | Insert seal rear right | 1 | 54342758114 | $3.86 | Shop at ECS Tuning | |||||
| 04 | Rail seal center left | 1 | 54342758107 | $15.36 | Shop at ECS Tuning | |||||
| 04 | Rail seal center right | 1 | 54342758108 | $15.36 | Shop at ECS Tuning | |||||
| 05 | Rail seal front left | 1 | 54342758101 | $7.69 | Shop at ECS Tuning | |||||
| 05 | Rail seal front right | 1 | 54342758102 | $7.69 | Shop at ECS Tuning | |||||
| 06 | Gasket rear left | 1 | 54342758111 | $9.62 | Shop at ECS Tuning | |||||
| 06 | Gasket rear right | 1 | 54342758112 | $9.62 | Shop at ECS Tuning | |||||
| 07 | Seal, center, left | 1 | 54347437655 | Shop at ECS Tuning | ||||||
| 07 | Seal, center, right | 1 | 54347437656 | Shop at ECS Tuning | ||||||
| 08 | Gasket, front left | 1 | 54347437653 | Shop at ECS Tuning | ||||||
| 08 | Gasket, front right | 1 | 54347437654 | Shop at ECS Tuning | ||||||
| 09 | Mounting kit, convertible top fabric | 1 | 54347463734 | Shop at ECS Tuning | ||||||
| 10 | Mounting kit, clamp | 1 | 54347463743 | Shop at ECS Tuning | ||||||
| 11 | Mounting kit, main column, channel | 1 | 54342758531 | $15.20 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 One Convertible top seals?
- This technical diagram illustrates the Convertible top seals within the Sliding Roof / Folding Top group for the MINI Cabrio F57 One produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Seal for clamp (Part #54347364818).
- Which models use the hardware listed in this Convertible top seals?
- The hardware and components featured in the Convertible top seals are specific to the MINI Cabrio F57 One produced during 2016. These technical specifications ensure that parts like the Seal for clamp (54347364818) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Convertible top seals assembly?
- Each item in the Convertible top seals corresponds to the numbered list below the illustration. For the MINI Cabrio F57 One, you can identify the Seal for clamp by locating its position on the schematic, which then links to the official BMW part number 54347364818 for the Sliding Roof / Folding Top section.
