Folding top mounting parts for BMW MINI Cabrio F57 LCI JCW (2024)

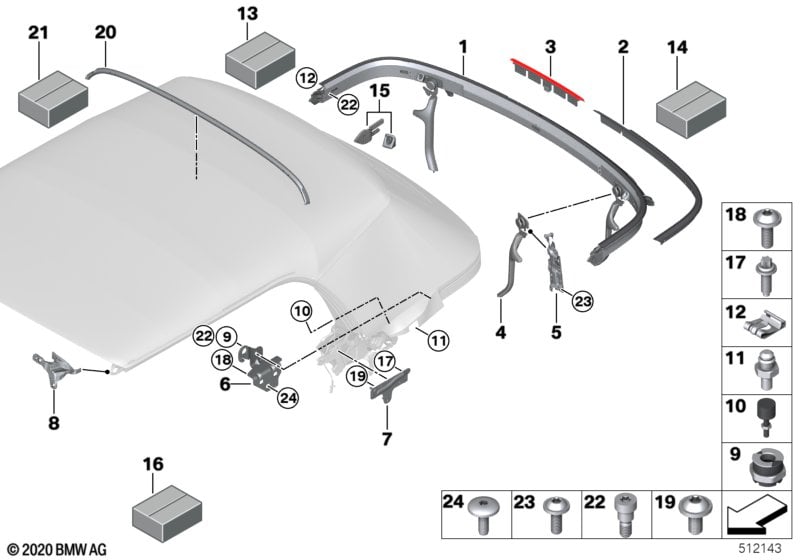

This Folding top mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tensioner | 1 | 54347463731 | Shop at ECS Tuning | ||||||
| 02 | Molding left | 1 | 54347364821 | Shop at ECS Tuning | ||||||
| 02 | Molding right | 1 | 54347364822 | Shop at ECS Tuning | ||||||
| 03 | Third stoplamp | 1 | 63257361123 | Shop at ECS Tuning | ||||||
| 04 | Locking mechanism, left | 1 | 54347364819 | Shop at ECS Tuning | ||||||
| 04 | Locking mechanism, right | 1 | 54347364820 | Shop at ECS Tuning | ||||||
| 05 | Holder seal convertible top bow left | 1 | 54347364841 | Shop at ECS Tuning | ||||||
| 05 | Holder seal convertible top bow right | 1 | 54347364842 | Shop at ECS Tuning | ||||||
| 06 | Bearing convertible top bow left | 1 | 54349491507 | Shop at ECS Tuning | ||||||
| 06 | Bearing convertible top bow right | 1 | 54349491508 | Shop at ECS Tuning | ||||||
| 07 | Supporting plate left | 1 | 54347364839 | Shop at ECS Tuning | ||||||
| 07 | Supporting plate right | 1 | 54347364840 | Shop at ECS Tuning | ||||||
| 08 | Mounting locking mechanism left | 1 | 54347364833 | Shop at ECS Tuning | ||||||
| 08 | Mounting locking mechanism right | 1 | 54347364834 | Shop at ECS Tuning | ||||||
| 09 | Adjustment element | 2 | 54347435852 | Shop at ECS Tuning | ||||||
| 10 | Rubber buffer | 2 | 54347463724 | Shop at ECS Tuning | ||||||
| 11 | Pin, convertible top cover | 2 | 54347149680 | $2.90 | Shop at ECS Tuning | |||||
| 12 | Fuse | B10-ZNS3 | 2 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Mounting kit, clamp | 1 | 54347463743 | Shop at ECS Tuning | ||||||
| 14 | Fastening set for trim strip | 1 | 54342758526 | $19.00 | Shop at ECS Tuning | |||||
| 15 | Attachment set joint convertible top bow | 1 | 54347463741 | Shop at ECS Tuning | ||||||
| 16 | Mounting kit, lock assembly, left | 1 | 54347463737 | Shop at ECS Tuning | ||||||
| 17 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 6 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 18 | ASA-Bolt | M8X25 | 4 | 07147316809 | Shop at ECS Tuning | |||||
| 19 | Torx bolt | ISA M6X12 | 4 | 07129907197 | Shop at ECS Tuning | |||||
| 20 | Main bow | 1 | 54347364799 | Shop at ECS Tuning | ||||||
| 21 | Fastening set for bow | 1 | 54342758518 | $40.07 | Shop at ECS Tuning | |||||
| 22 | Stage pin | M8 | 2 | 54347440873 | Shop at ECS Tuning | |||||
| 23 | Fillister head screw | M6X16 8.8 | 6 | 51119907273 | Shop at ECS Tuning | |||||
| 24 | Torx bolt | M6X12 | 2 | 07149112453 | $0.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI JCW Folding top mounting parts?
- This technical diagram illustrates the Folding top mounting parts within the Sliding Roof / Folding Top group for the MINI Cabrio F57 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Tensioner (Part #54347463731).
