Convertible top electr.system/harness for BMW MINI Cabrio F57 JCW (2021)

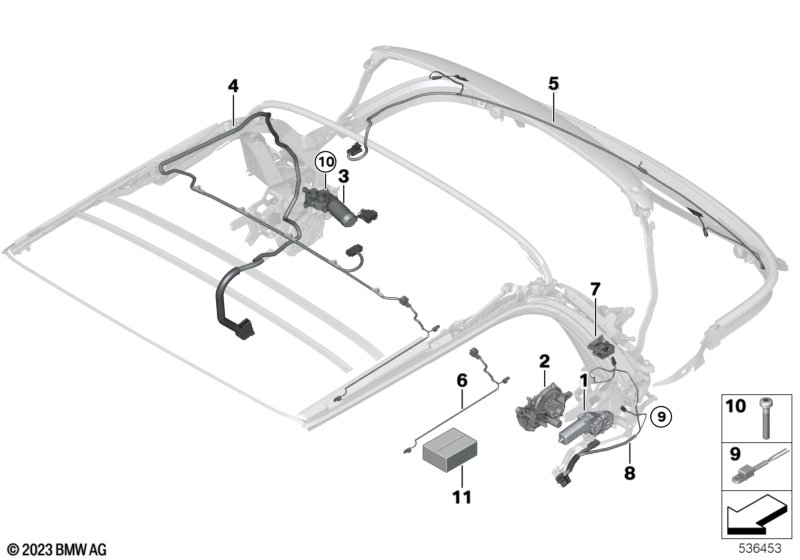

This Convertible top electr.system/harness technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive convertible top left | 1 | 51347464534 | Shop at ECS Tuning | ||||||
| 01 | Drive convertible top right | 1 | 51347464535 | Shop at ECS Tuning | ||||||
| 02 | Left drive unit | 1 | 54347463729 | Shop at ECS Tuning | ||||||
| 02 | Drive unit right | 1 | 54347463730 | Shop at ECS Tuning | ||||||
| 03 | Drive unit for sunroof | 1 | 51347464536 | Shop at ECS Tuning | ||||||
| 04 | Cable harness folding top | 1 | 54347364826 | Shop at ECS Tuning | ||||||
| 05 | Wiring harness clamp | 1 | 54347364827 | Shop at ECS Tuning | ||||||
| 06 | Repair kit, wiring harness for sensors | 1 | 54342758486 | $38.40 | Shop at ECS Tuning | |||||
| 07 | Rep.kit for storage compartment lock | 1 | 54347463736 | Shop at ECS Tuning | ||||||
| 08 | Wiring harness conv.top drive left | 1 | 51349465452 | Shop at ECS Tuning | ||||||
| 09 | Hall sensor | 1 | 54342758070 | Shop at ECS Tuning | ||||||
| 10 | Screw | M5X30 | 3 | 54102993891 | Shop at ECS Tuning | |||||
| 11 | Attachment set drive convertible top | 1 | 54347463746 | Shop at ECS Tuning |
