Con.top rollover protection system for BMW MINI Cabrio F57 LCI JCW (2024)

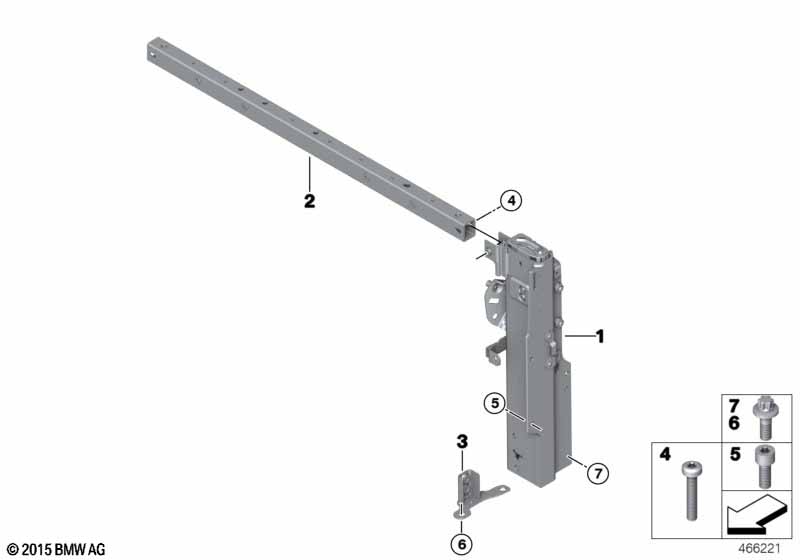

This Con.top rollover protection system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rollover protection system left | 1 | 54607402887 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Rollover protection system right | 1 | 54607402888 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Repair wiring for airbag system | 1 | 61129193973 | $15.65 | Shop at ECS Tuning | |||||
| 02 | Rollover bar | 1 | 54607363037 | Shop at ECS Tuning | ||||||
| 02 | Rollover bar | 1 | 54625A50F56 | NoS | Shop at ECS Tuning | |||||
| 03 | Adaptor left | 1 | 54617419879 | Shop at ECS Tuning | ||||||
| 03 | Adaptor right | 1 | 54617419880 | Shop at ECS Tuning | ||||||
| 04 | Countersunk screw | 8X45MM | 2 | 51479908579 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M8X25-10.9-ZNS3 | 8 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M8X20 ZNS3 | 16 | 54619907089 | Shop at ECS Tuning | |||||
| 07 | ASA-Bolt | M8X16 ZNS3 | 4 | 07119908222 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI JCW Con.top rollover protection system?
- This technical diagram illustrates the Con.top rollover protection system within the Sliding Roof / Folding Top group for the MINI Cabrio F57 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Rollover protection system left (Part #54607402887).
- Which models use the hardware listed in this Con.top rollover protection system?
- The hardware and components featured in the Con.top rollover protection system are specific to the MINI Cabrio F57 LCI JCW produced during 2024. These technical specifications ensure that parts like the Rollover protection system left (54607402887) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Con.top rollover protection system assembly?
- Each item in the Con.top rollover protection system corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI JCW, you can identify the Rollover protection system left by locating its position on the schematic, which then links to the official BMW part number 54607402887 for the Sliding Roof / Folding Top section.
