Panorama roof mounting parts for BMW 5 Series G31 Touring 520dX (2020)

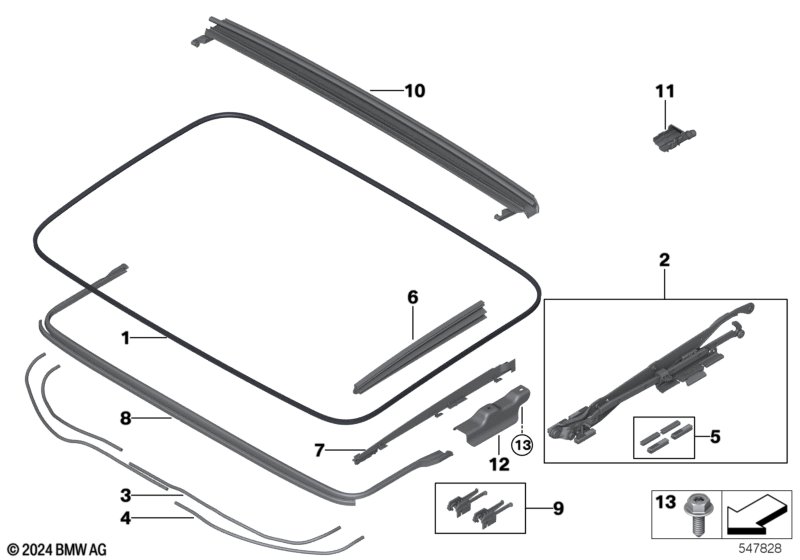

This Panorama roof mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| 01 | Surrounding seal | L=4300 | 1 | 54107430946 | Shop at ECS Tuning | |||||
| 02 | Mechanism glass cover, front | 1 | 54107474474 | Shop at ECS Tuning | ||||||
| 03 | Drive cable for roller sunblind | 1 | 54107474481 | Shop at ECS Tuning | ||||||
| 04 | Drive cable, moonroof panel, front | 1 | 54107474482 | Shop at ECS Tuning | ||||||
| 05 | Repair kit slider mechanics front | 1 | 54107474480 | Shop at ECS Tuning | ||||||
| 06 | Rubber boot | 2 | 54107391880 | Shop at ECS Tuning | ||||||
| 07 | Covering inner | 1 | 54107474470 | Shop at ECS Tuning | ||||||
| 08 | Slipstream deflector | 1 | 54107474471 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Bearing for wind deflector | 1 | 54107474472 | Shop at ECS Tuning | ||||||
| -- | Fillister head screw | 1 | 07149177918 | Shop at ECS Tuning | ||||||
| 09 | Bearing for wind deflector | 1 | 54107474472 | Shop at ECS Tuning | ||||||
| 10 | Rain gutter | 1 | 54107474473 | NoS | Shop at ECS Tuning | |||||
| 11 | Set end piece for sealing | 1 | 54107474479 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring 520dX Panorama roof mounting parts?
- This technical diagram illustrates the Panorama roof mounting parts within the Sliding Roof / Folding Top group for the 5 Series G31 Touring 520dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Surrounding seal (Part #54107430946).
- Which models use the hardware listed in this Panorama roof mounting parts?
- The hardware and components featured in the Panorama roof mounting parts are specific to the 5 Series G31 Touring 520dX produced during 2020. These technical specifications ensure that parts like the Surrounding seal (54107430946) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama roof mounting parts assembly?
- Each item in the Panorama roof mounting parts corresponds to the numbered list below the illustration. For the 5 Series G31 Touring 520dX, you can identify the Surrounding seal by locating its position on the schematic, which then links to the official BMW part number 54107430946 for the Sliding Roof / Folding Top section.
