Panorama glass roof glass panel for BMW 6 Series G32 GT 630d (2020)

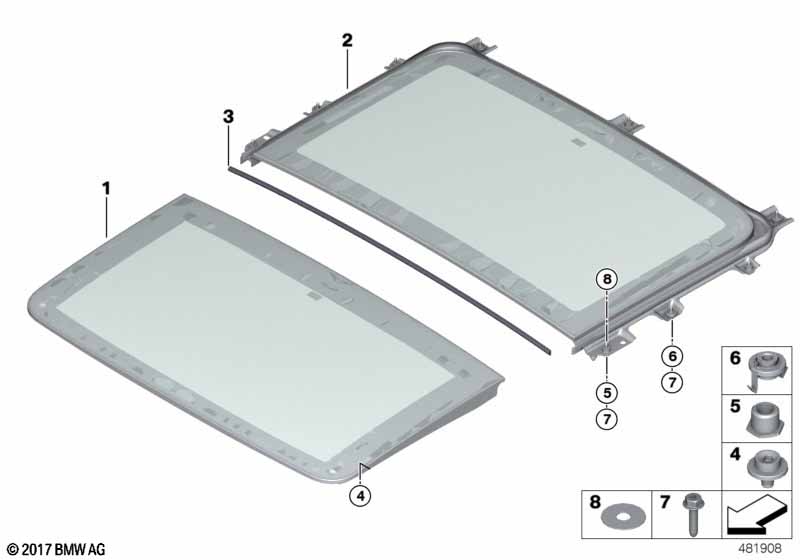

This Panorama glass roof glass panel technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| 01 | Glass cover, front | 1 | 54107488438 | Shop at ECS Tuning | ||||||
| 02 | Glass cover, rear | 1 | 54107488433 | Shop at ECS Tuning | ||||||
| 03 | Gasket, glass cover, rear | 1 | 54107474469 | Shop at ECS Tuning | ||||||
| 04 | Torx screw | M5X9 | 6 | 54107209194 | $4.22 | Shop at ECS Tuning | ||||
| 05 | Adjustment element, passive | 4 | 54107474467 | Shop at ECS Tuning | ||||||
| 06 | Adjustment element, active | M14X11,2 | 5 | 54107474466 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex bolt | M6X26 ZNS3 | 9 | 07147255757 | Shop at ECS Tuning | |||||
| 08 | Plastic washer | 5X5X0,5 | 5 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630d Panorama glass roof glass panel?
- This technical diagram illustrates the Panorama glass roof glass panel within the Sliding Roof / Folding Top group for the 6 Series G32 GT 630d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Glass cover, front (Part #54107488438).
- Which models use the hardware listed in this Panorama glass roof glass panel?
- The hardware and components featured in the Panorama glass roof glass panel are specific to the 6 Series G32 GT 630d produced during 2020. These technical specifications ensure that parts like the Glass cover, front (54107488438) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama glass roof glass panel assembly?
- Each item in the Panorama glass roof glass panel corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630d, you can identify the Glass cover, front by locating its position on the schematic, which then links to the official BMW part number 54107488438 for the Sliding Roof / Folding Top section.
