Sliding lifting roof-glasscover for BMW 4 Series G22 Coupé 420i (2024)

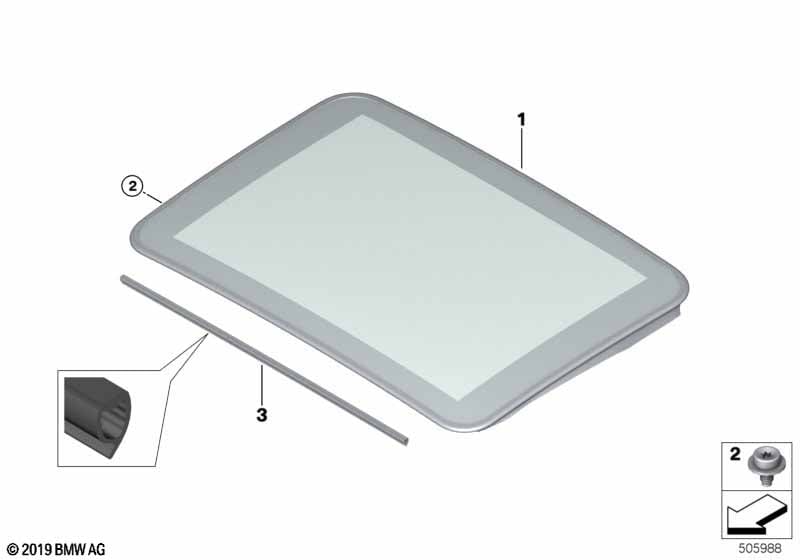

This Sliding lifting roof-glasscover technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glass cover | 1 | 54109854517 | Shop at ECS Tuning | ||||||
| 02 | Torx screw | M5X9 | 6 | 54107209194 | $4.22 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420i Sliding lifting roof-glasscover?
- This technical diagram illustrates the Sliding lifting roof-glasscover within the Sliding Roof / Folding Top group for the 4 Series G22 Coupé 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Glass cover (Part #54109854517).
- Which models use the hardware listed in this Sliding lifting roof-glasscover?
- The hardware and components featured in the Sliding lifting roof-glasscover are specific to the 4 Series G22 Coupé 420i produced during 2024. These technical specifications ensure that parts like the Glass cover (54109854517) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sliding lifting roof-glasscover assembly?
- Each item in the Sliding lifting roof-glasscover corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420i, you can identify the Glass cover by locating its position on the schematic, which then links to the official BMW part number 54109854517 for the Sliding Roof / Folding Top section.
