Sliding/tilting sunroof blind for BMW 3 Series G20 Sedan LCI 330dX (2021)

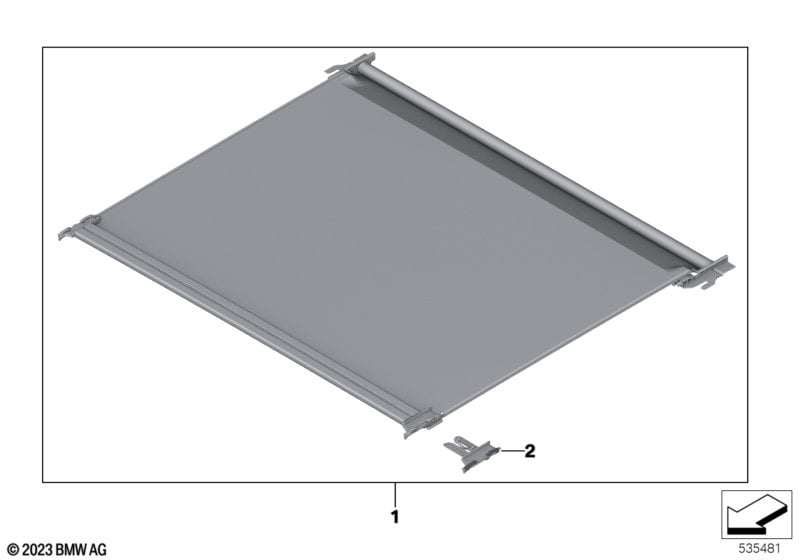

This Sliding/tilting sunroof blind technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Roller blind, sliding roof | SCHWARZ | 1 | 54108081470 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and canberra-beige or canberra-beige Dekorsteppung or canberra-beige Dekorsteppung or canberra-beige or Sensatec perforated/Canberra beige, ext. or Sensatec perforated/Canberra beige, ext. |
S775A=No CY=Yes FO=Yes FX=Yes FY=Yes KHFR=Yes KHFS=Yes |
|||||||||
| 01 | Roller blind, sliding roof | CANBERREBEIGE | 1 | 54108737869 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Cloth "Checkered" or Black dec.top stitching or Black Exclusive seam or mokka Dekorsteppung or Black dec.top stitching exclusive seam or moire-grau or cognac Dekorsteppung or Black or Cloth Hevelius/anthracite or SENSATEC TACORA RED or Sensatec/mocca or Sensatec Cognac or Fabric sensatec./ black or Sensatec perf./Tacora red decor strips or Sensatec perf./Tacora red decor strips or Sensatec perforated/Tacora red or Sensatec perforated/cognac, extended or Sensatec PERF./Mocha decor stitching or Sensatec perf./black contrast stitching or Sensatec perforated/black or Leather Vernasca/tacora red dec.stitch. or Leather, Vernasca, black, gray stitching or Leather Vernasca/mocca decor.stitching or Leather Vernasca/ oyster dec.stitching or Leather, Vernasca, cognac, gy stitching |
S775A=No AT=Yes H7=Yes LZ=Yes MU=Yes NJ=Yes OI=Yes PQ=Yes SW=Yes EHAT=Yes KCG7=Yes KCMY=Yes KCRI=Yes KFSW=Yes KHER=Yes KHG6=Yes KHG7=Yes KHKC=Yes KHMU=Yes KHNL=Yes KHSW=Yes MAG6=Yes MAH7=Yes MAMU=Yes MAOI=Yes MAPQ=Yes |
|||||||||
| 01 | Roller blind, sliding roof | ELENBEINWEISS | 1 | 54108737870 | NoS | Shop at ECS Tuning | ||||
| 02 | Slider, roller blind | 1 | 54108737873 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
