Folding-top, hydraulic for BMW 8 Series G14 Convertible 840dX (2024)

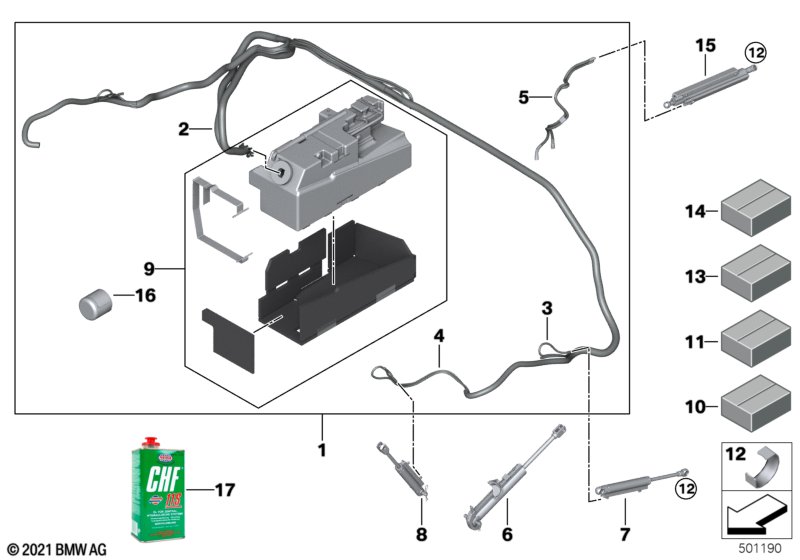

This Folding-top, hydraulic technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | hydraulic pump | 1 | 54347947310 | Shop at ECS Tuning | ||||||
| 02 | Set, hydr.line tandem brake master cyl. | 1 | 54349448963 | Shop at ECS Tuning | ||||||
| 03 | Set, hydr.line, convertible top cover | 1 | 54349448964 | Shop at ECS Tuning | ||||||
| 04 | Set, hydr.line, convertible top brace | 1 | 54349448965 | Shop at ECS Tuning | ||||||
| 05 | Set, hydraulic line, tailgate | 1 | 54349448966 | Shop at ECS Tuning | ||||||
| 06 | Set of hyd.cylinders for convertible top | 1 | 54347947410 | Shop at ECS Tuning | ||||||
| 07 | Set hydr.cylinders conv.top compart.lid | 1 | 54349448967 | Shop at ECS Tuning | ||||||
| 08 | Set, hydr.cyl., convertible top brace | 1 | 54349448968 | Shop at ECS Tuning | ||||||
| 09 | Acoustic insulation for hydraulic pump | 1 | 54347947287 | Shop at ECS Tuning | ||||||
| 10 | Emergency mechanism cover | 1 | 54347947293 | Shop at ECS Tuning | ||||||
| 11 | Set of hinge pins | 1 | 54347947414 | Shop at ECS Tuning | ||||||
| 12 | Securing spring | 1 | 54347947295 | Shop at ECS Tuning | ||||||
| 13 | Mounting kit for hydraulics | 1 | 54347947411 | Shop at ECS Tuning | ||||||
| 14 | Mounting kit for hydraulic cylinder | 1 | 54349448969 | Shop at ECS Tuning | ||||||
| 15 | Hydraulic cylinder, tailgate | 1 | 51247492521 | Shop at ECS Tuning | ||||||
| 16 | Cover, hydraulic unit | 1 | 54349448950 | Shop at ECS Tuning | ||||||
| 17 | Hydraulic fluid CHF 11 S | 1000ML | 1 | 83290429576 | $22.27 | Shop at ECS Tuning |
