Electric panoramic roof for BMW 2 Series F44 Gran Coupé 220i (2024)

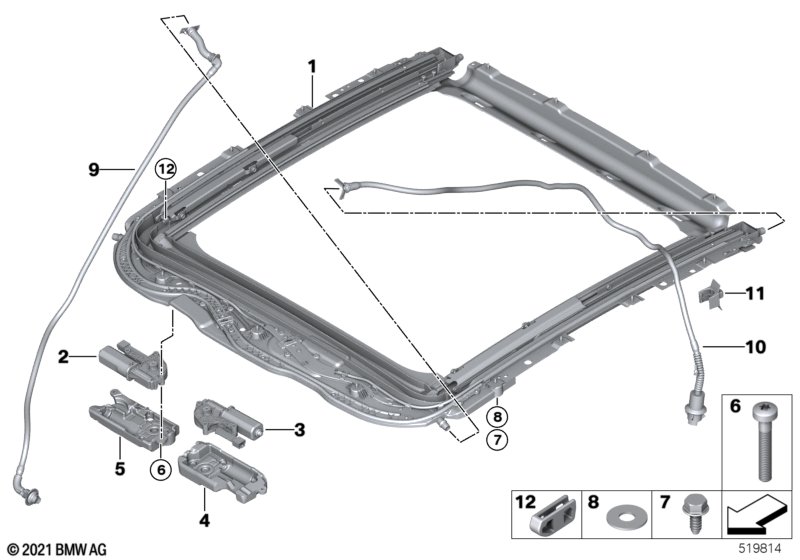

This Electric panoramic roof technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame sliding-lifting roof | 1 | 54109466553 | Shop at ECS Tuning | ||||||
| 02 | Drive panorama glass roof | 1 | 67619498890 | Shop at ECS Tuning | ||||||
| 03 | Drive roller sunblind panoram.glass roof | 1 | 67618495205 | Shop at ECS Tuning | ||||||
| 04 | Foam cover, roller sunblind motor | 1 | 54108491961 | NoS | Shop at ECS Tuning | |||||
| 05 | Foam caps.glass slide/tilt roof pan.mot. | 1 | 54107932857 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | M5X30 | 6 | 54107198098 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Replacement screw | ST-6,8X12,5 | 15 | 07149143635 | $2.62 | Shop at ECS Tuning | ||||
| 07 | Screw self-tapping | M6X14,5 | 15 | 11148570144 | Shop at ECS Tuning | |||||
| 08 | Plastic washer | 5X5X0,5 | 15 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
| 09 | Water outlet hose front | 2 | 41007473827 | Shop at ECS Tuning | ||||||
| 10 | Water outlet hose rear | 2 | 54107395935 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | 16 | 07147294693 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
