Panorama roof mounting parts for BMW 2 Series F44 Gran Coupé 216i (2024)

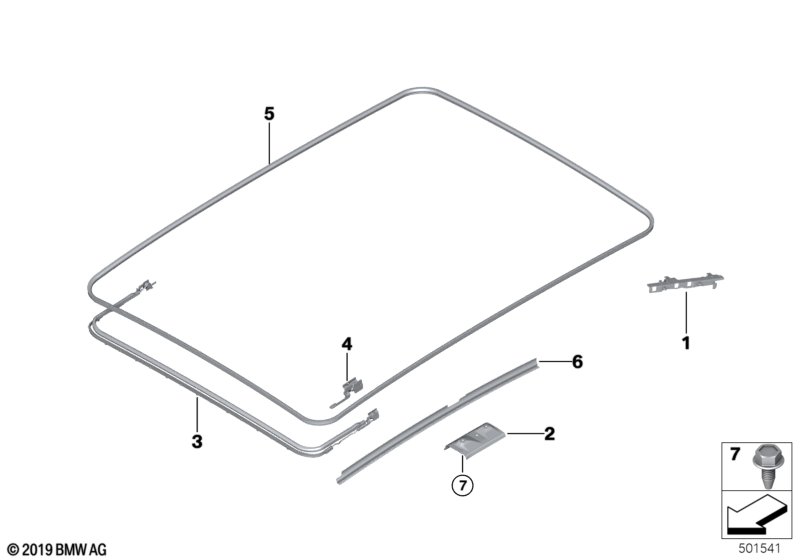

This Panorama roof mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left cable guide | 1 | 54107491933 | NoS | Shop at ECS Tuning | |||||
| 01 | Right cable guide | 1 | 54107491934 | NoS | Shop at ECS Tuning | |||||
| 03 | Slipstream deflector | 1 | 54107391791 | Shop at ECS Tuning | ||||||
| 04 | Bearing for wind deflector | 2 | 54109466552 | NoS | Shop at ECS Tuning | |||||
| Order qty. 1 pc. = packaging unit 5 m in box |
||||||||||
| 05 | Gasket, roof cut-out | L=4055 | 1 | 54107332706 | Shop at ECS Tuning | |||||
| 06 | Acoustic seal, left | 1 | 54109883321 | Shop at ECS Tuning | ||||||
| 06 | Acoustic seal, right | 1 | 54109883322 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
