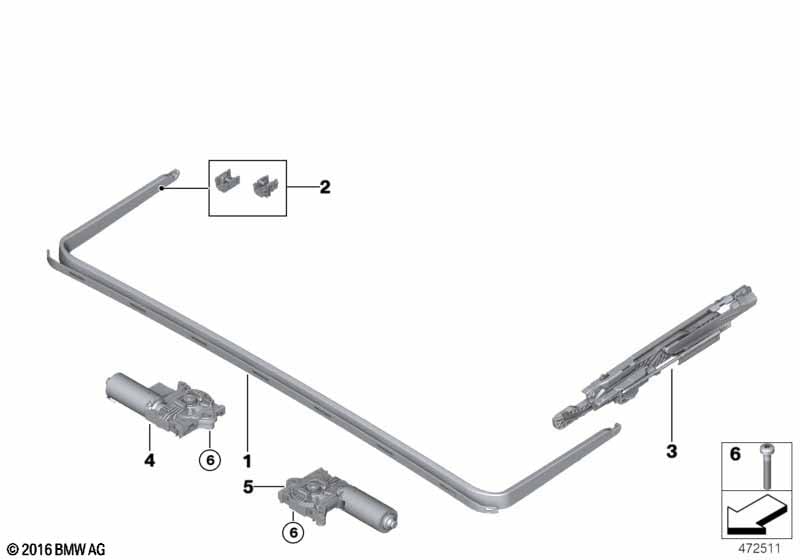

Panorama roof mounting parts for BMW 1 Series F40 120dX (2023)
This Panorama roof mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| 01 | Slipstream deflector | 1 | 54108499249 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mechanical parts, wind deflector | 1 | 54107461205 | Shop at ECS Tuning | ||||||
| 02 | Mechanical parts, wind deflector | 1 | 54107461205 | Shop at ECS Tuning | ||||||
| 03 | Mechanics panorama glass roof | 1 | 54107461203 | Shop at ECS Tuning | ||||||
| 04 | Drive gl.slide/tilt roof pan.pano.sunr. | 1 | 67617933140 | Shop at ECS Tuning | ||||||
| 05 | Drive roller sunblind panoram.glass roof | 1 | 67617933150 | Shop at ECS Tuning | ||||||
| 06 | Screw | M5X30 | 6 | 54108499254 | Shop at ECS Tuning | |||||
