Panorama glass roof glass panel for BMW 3 Series G28 Sedan LCI 320Ld (2024)

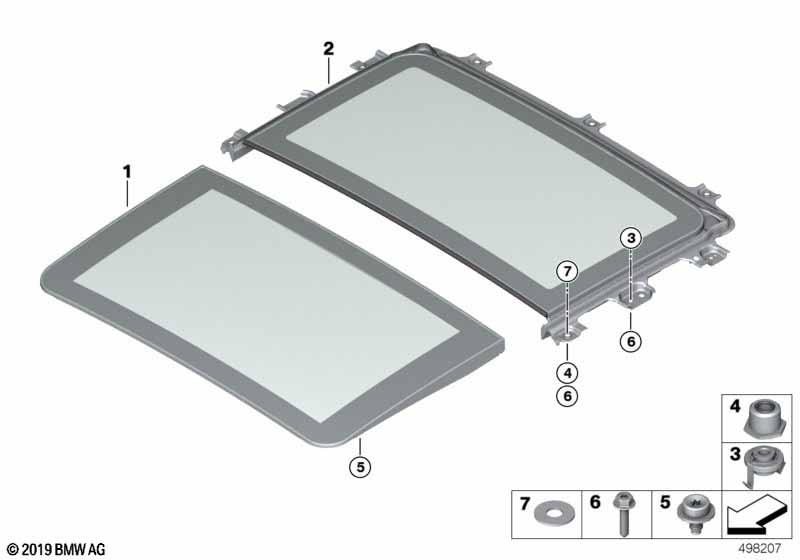

This Panorama glass roof glass panel technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Glass cover, front | 1 | 54107011155 | Shop at ECS Tuning | ||||||
| 02 | Glass cover, rear | 1 | 54107011159 | Shop at ECS Tuning | ||||||
| 03 | Adjustment element, passive | 4 | 54107474467 | Shop at ECS Tuning | ||||||
| 04 | Adjustment element, active | M14X11,2 | 5 | 54107474466 | Shop at ECS Tuning | |||||
| 05 | Torx screw | M5X9 | 6 | 54107209194 | $4.22 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex bolt | M6X26 ZNS3 | 9 | 07147255757 | Shop at ECS Tuning | |||||
| 07 | Plastic washer | 5X5X0,5 | 18 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
