Sliding lifting roof frame for BMW 5 Series G30 520dX (2020)

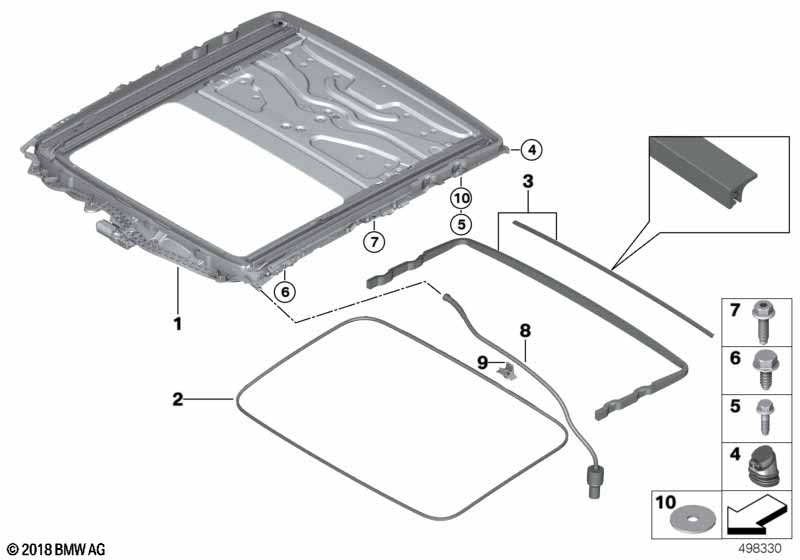

This Sliding lifting roof frame technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Glass roof, electrical |
S403A=Yes |
||||||||
| 01 | Sliding roof frame | 1 | 54107458888 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 02 | Surrounding seal | L=2883 | 1 | 54107245551 | $30.68 | Shop at ECS Tuning | ||||
| 03 | Seal, sunroof | 2 | 54107382989 | Shop at ECS Tuning | ||||||
| 04 | Valve | 2 | 54137031130 | $0.54 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X23 ZNS3 | 2 | 07147209202 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X14 | 10 | 07147226126 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex bolt | M6X26 ZNS3 | 2 | 07147255757 | Shop at ECS Tuning | |||||
| 08 | Water outlet hose front | 2 | 54107348404 | Shop at ECS Tuning | ||||||
| 08 | Water outlet hose rear | HINTEN | 2 | 54107379736 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 12 | 07147294693 | Shop at ECS Tuning | ||||||
| 10 | Plastic washer | 5X5X0,5 | 14 | 54107153589 | $0.12 | Shop at ECS Tuning | ||||
