Convertible top, complete for BMW 4 Series G23 Convertible 420i (2024)

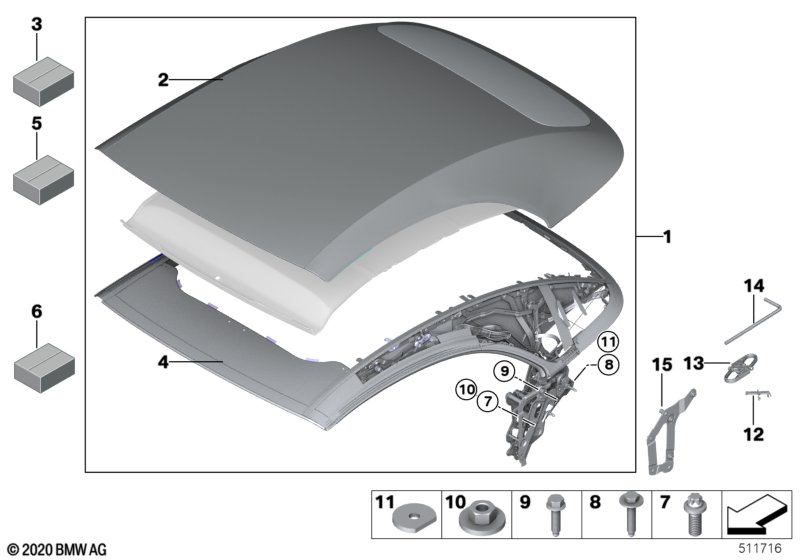

This Convertible top, complete technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Convertible top, complete | SCHWARZ | 1 | 54348492520 | Shop at ECS Tuning | |||||
| For vehicles with Conv. Top, anthracite with silver accent |
S3YAA=Yes |
|||||||||
| 01 | Convertible top, complete | SCHWARZ-SILBER | 1 | 54348492531 | Shop at ECS Tuning | |||||
| 02 | Convertible top cover | SCHWARZ | 1 | 54345A05DE9 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Mounting kit, convertible top fabric | 1 | 54345A05DF1 | Shop at ECS Tuning | ||||||
| For vehicles with Conv. Top, anthracite with silver accent |
S3YAA=Yes |
|||||||||
| 02 | Convertible top cover | SCHWARZ-SILBER | 1 | 54345A05DF0 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Mounting kit, convertible top fabric | 1 | 54345A05DF1 | Shop at ECS Tuning | ||||||
| 03 | Mounting kit, convertible top fabric | 1 | 54345A05DF1 | Shop at ECS Tuning | ||||||
| 04 | Convertible top linkage rods | 1 | 54345A05DE0 | Shop at ECS Tuning | ||||||
| 05 | Repair kit for tension cable | 1 | 54345A05DE3 | Shop at ECS Tuning | ||||||
| 06 | Repair kit rear window control | 1 | 54345A05DE8 | Shop at ECS Tuning | ||||||
| 07 | Star-socket screw | M10X25-PC-10.9 | 4 | 07119908494 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X40-PC-U2-10 | 2 | 51719908456 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X40-10.9-ZNS | 2 | 16199907371 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | M8 | 4 | 07147139131 | $1.89 | Shop at ECS Tuning | ||||
| 11 | Washer | 35X4 | 2 | 07147130795 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Convertible top brace emergency lock | 1 | 54345A04CD5 | Shop at ECS Tuning | ||||||
| 13 | Attachment emergency release convert.top | 2 | 54349854490 | Shop at ECS Tuning | ||||||
| 14 | Emergency operation crank | 1 | 54347208264 | Shop at ECS Tuning | ||||||
| 15 | Bracket, convertible top, left | 1 | 54348494381 | Shop at ECS Tuning | ||||||
| 15 | Bracket, convertible top, right | 1 | 54348494382 | Shop at ECS Tuning | ||||||
