Convertible top wiring harness for BMW 4 Series G23 Convertible LCI M440i (2025)

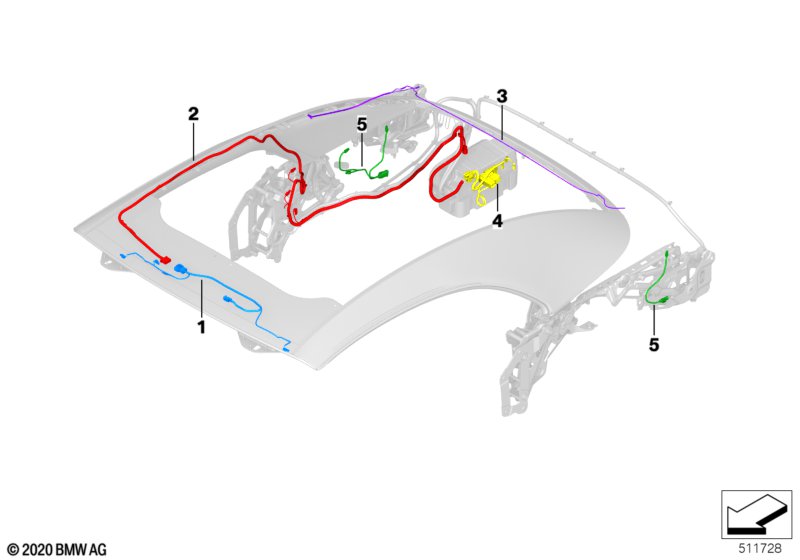

This Convertible top wiring harness technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit for wiring harness lock | 1 | 54345A05E13 | Shop at ECS Tuning | ||||||
| 02 | Cable harness folding top | 1 | 54345A05DE1 | Shop at ECS Tuning | ||||||
| 03 | Wiring harness, rear window | 1 | 54345A05DE2 | Shop at ECS Tuning | ||||||
| 04 | Wiring harness for hydraulic pump | MIT 2 RELAIS | 1 | 54345A05E20 | Shop at ECS Tuning | |||||
| 05 | Wiring harness compartment lid, left | 1 | 54345A05E31 | Shop at ECS Tuning | ||||||
| 05 | Wiring harness compartment lid, right | 1 | 54345A05E32 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI M440i Convertible top wiring harness?
- This technical diagram illustrates the Convertible top wiring harness within the Sliding Roof / Folding Top group for the 4 Series G23 Convertible LCI M440i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit for wiring harness lock (Part #54345A05E13).
- Which models use the hardware listed in this Convertible top wiring harness?
- The hardware and components featured in the Convertible top wiring harness are specific to the 4 Series G23 Convertible LCI M440i produced during 2025. These technical specifications ensure that parts like the Repair kit for wiring harness lock (54345A05E13) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Convertible top wiring harness assembly?
- Each item in the Convertible top wiring harness corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI M440i, you can identify the Repair kit for wiring harness lock by locating its position on the schematic, which then links to the official BMW part number 54345A05E13 for the Sliding Roof / Folding Top section.
