Rollover protection system for BMW 4 Series G23 Convertible 430i (2024)

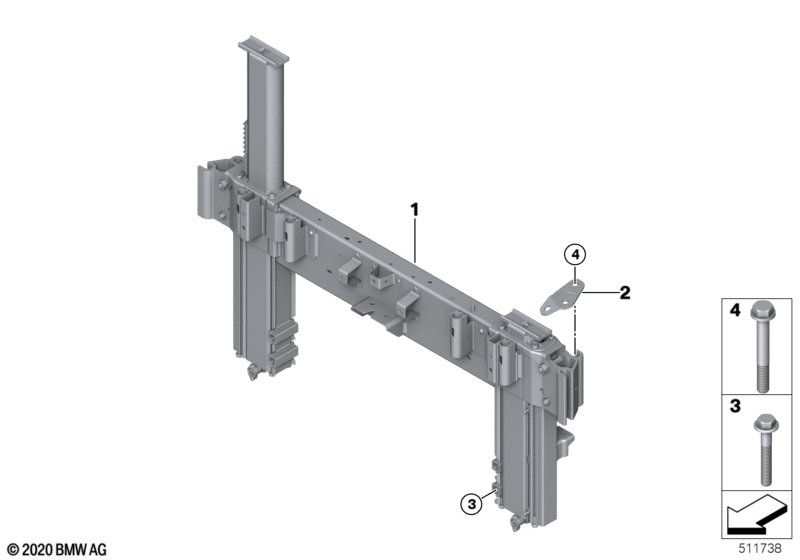

This Rollover protection system technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rollover protection system | 1 | 54627490102 | Shop at ECS Tuning | ||||||
| 02 | Bracket, rollover protection system, RL | 1 | 54627499269 | Shop at ECS Tuning | ||||||
| 02 | Bracket, rollover protection system, RR | 1 | 54627499270 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M10X85-U1-10.9 | 4 | 07145A29E99 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1,5X160 | 4 | 07119905980 | $5.71 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible 430i Rollover protection system?
- This technical diagram illustrates the Rollover protection system within the Sliding Roof / Folding Top group for the 4 Series G23 Convertible 430i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Rollover protection system (Part #54627490102).
- Which models use the hardware listed in this Rollover protection system?
- The hardware and components featured in the Rollover protection system are specific to the 4 Series G23 Convertible 430i produced during 2024. These technical specifications ensure that parts like the Rollover protection system (54627490102) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rollover protection system assembly?
- Each item in the Rollover protection system corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible 430i, you can identify the Rollover protection system by locating its position on the schematic, which then links to the official BMW part number 54627490102 for the Sliding Roof / Folding Top section.
