Convertible top folding mechanism for BMW 4 Series G23 Convertible LCI 430i (2025)

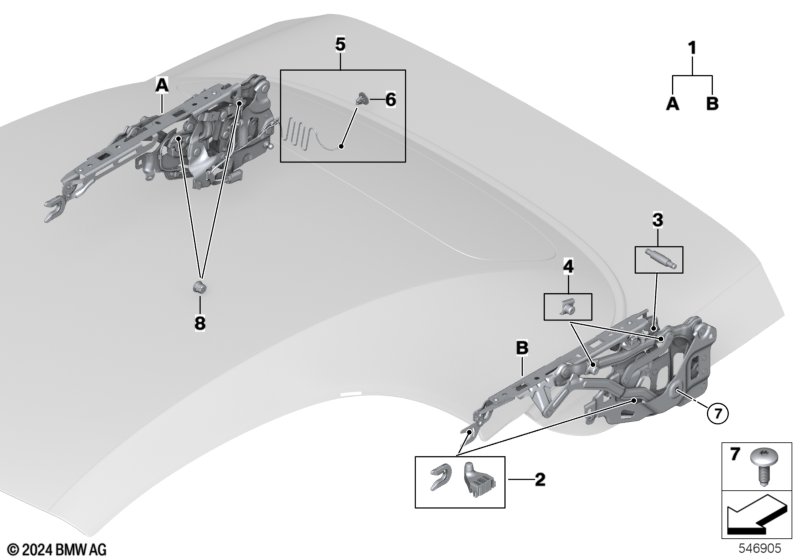

This Convertible top folding mechanism technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit drive sys.conv.top comp.lid | 1 | 54345A05E28 | Shop at ECS Tuning | ||||||
| 02 | Repair kit holder convertible top brace | 1 | 54345A05E29 | Shop at ECS Tuning | ||||||
| 03 | Repair kit roller safety catch | 1 | 54345A05E33 | Shop at ECS Tuning | ||||||
| 04 | Set of stops drive sys. con.top comp.lid | 1 | 54345A05E34 | Shop at ECS Tuning | ||||||
| 05 | Set emer.oper.drive sys.con.top comp.lid | 1 | 54345A05E35 | Shop at ECS Tuning | ||||||
| 06 | Emergency release button | 1 | 54347129588 | $2.96 | Shop at ECS Tuning | |||||
| 07 | Combi oval-head machine screw | ISA M8X20 | 6 | 07147234925 | Shop at ECS Tuning | |||||
| 08 | Magnet convertible top folding mechanism | 1 | 54345A44B39 | Shop at ECS Tuning |
