Folding top compartment for BMW 4 Series G23 Convertible LCI 420i (2025)

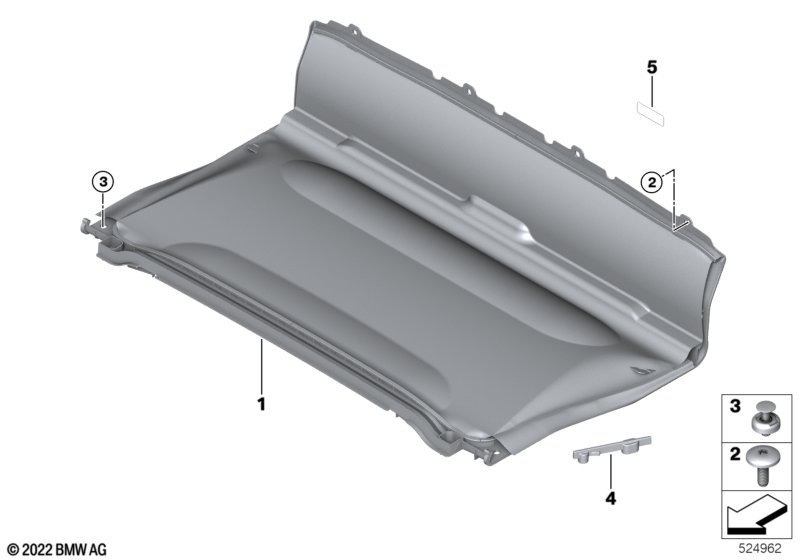

This Folding top compartment technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| contains microswitch, con top comp floor I028 and I029 |
||||||||||
| 01 | Conv top compartment with microswitch | 1 | 51177490641 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Information label travel path VVK | 1 | 54345A6F8E6 | Shop at ECS Tuning | ||||||
| 02 | Torx bolt | ISA M6X18 SW | 4 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 03 | Fixing plug | 14 | 07147397783 | Shop at ECS Tuning | ||||||
| 04 | Mount, headliner, left | 1 | 51179881005 | Shop at ECS Tuning | ||||||
| 04 | Mount, headliner, right | 1 | 51179881006 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 05 | Information label travel path VVK | 1 | 54345A6F8E6 | Shop at ECS Tuning | ||||||
