Convertible top convertible roof brace for BMW 4 Series G23 Convertible M440i (2024)

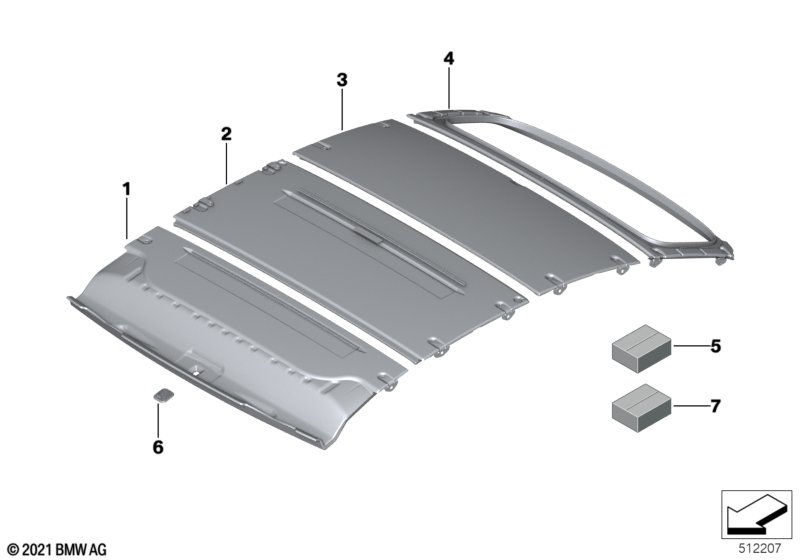

This Convertible top convertible roof brace technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit convertible roof brace front | 1 | 54345A05DF6 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment set convertible roof brace | 1 | 54345A05E00 | Shop at ECS Tuning | ||||||
| 02 | Repair kit convertible roof brace center | 1 | 54345A05DF7 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment set convertible roof brace | 1 | 54345A05E00 | Shop at ECS Tuning | ||||||
| 03 | Repair kit convertible roof brace rear | 1 | 54345A05DF8 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment set convertible roof brace | 1 | 54345A05E00 | Shop at ECS Tuning | ||||||
| 04 | Repair kit conve.roof brace rear window | 1 | 54345A05DF9 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment set convertible roof brace | 1 | 54345A05E00 | Shop at ECS Tuning | ||||||
| 05 | Attachment set convertible roof brace | 1 | 54345A05E00 | Shop at ECS Tuning | ||||||
| 06 | Emergency mechanism cover | 1 | 54347421655 | Shop at ECS Tuning | ||||||
| 07 | Foam rubber tape | 1 | 54345A33FD9 | Shop at ECS Tuning | ||||||
