Panorama glass roof, roller for BMW 7 Series G70 740i (2025)

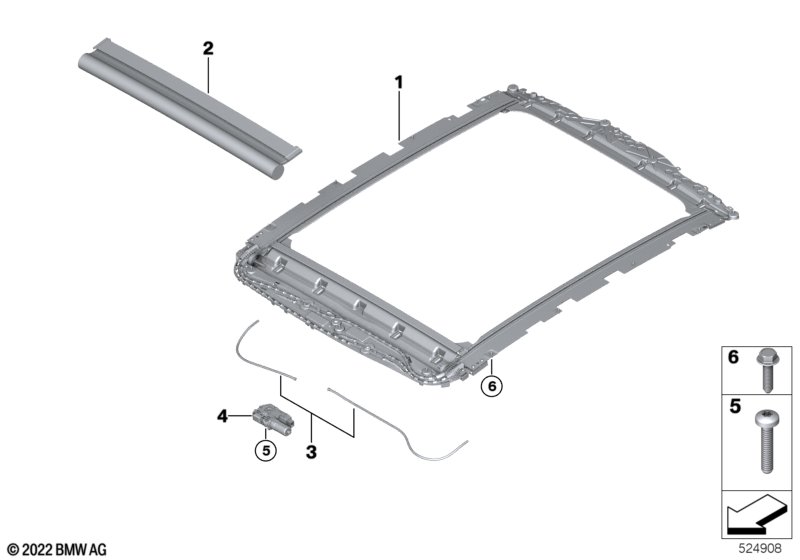

This Panorama glass roof, roller technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fond Entertainment Experience |
S6FRA=No |
|||||||||
| 01 | Frame roller blind | 1 | 54105A32081 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 02 | Panorama roof blind | ANTHRAZIT | 1 | 54105A32083 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 02 | Panorama roof blind | ANTHRAZIT | 1 | 54105A32083 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=No S776A=Yes |
|||||||||
| 02 | Panorama roof blind | ANTHRAZIT | 1 | 54105A32083 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veganza |
S775A=No S776A=No KV=Yes |
|||||||||
| 02 | Panorama roof blind | ELFENBEINWEISS | 1 | 54105A32082 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and BMW Ind.leather w/lux.leather Tartufo |
S775A=No S776A=No VDTQ=Yes |
|||||||||
| 02 | Panorama roof blind | NACHTBLAU | 1 | 54105A32087 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and BMW Ind.leather w/lux.F2 Amarone or Leath.Merino/Wk lux.Smoke White/lt.gy |
S775A=No S776A=No VDF2=Yes VEII=Yes |
|||||||||
| 02 | Panorama roof blind | ALTLASGRAU | 1 | 54105A32086 | Shop at ECS Tuning | |||||
| 03 | Drive cable panorama roof blind | 2 | 54105A32079 | Shop at ECS Tuning | ||||||
| 04 | Drive sliding sunroof | 1 | 67615A38C65 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | M5X28 | 2 | 54107209205 | $1.98 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X14 | 15 | 07147226126 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Panorama glass roof, roller?
- This technical diagram illustrates the Panorama glass roof, roller within the Sliding Roof / Folding Top group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Frame roller blind (Part #54105A32081).
- Which models use the hardware listed in this Panorama glass roof, roller?
- The hardware and components featured in the Panorama glass roof, roller are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Frame roller blind (54105A32081) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama glass roof, roller assembly?
- Each item in the Panorama glass roof, roller corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Frame roller blind by locating its position on the schematic, which then links to the official BMW part number 54105A32081 for the Sliding Roof / Folding Top section.
