Panorama glass roof glass panel for BMW 5 Series G90 M5 M5 (2025)

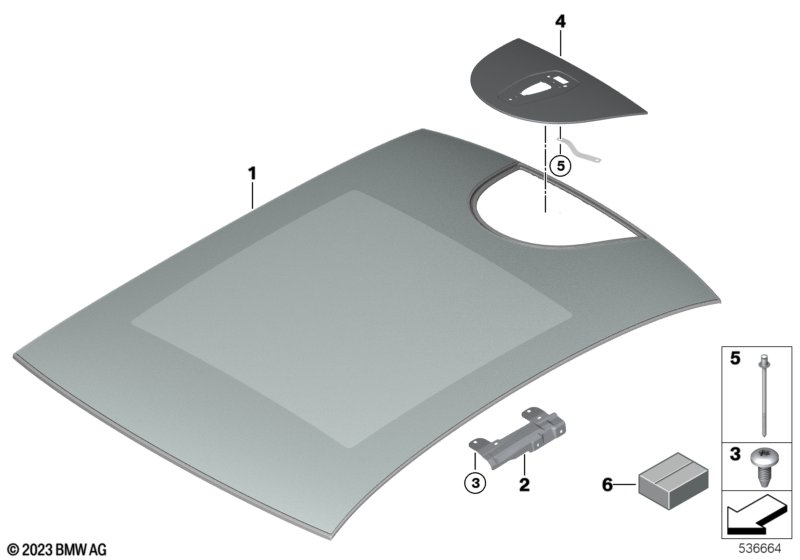

This Panorama glass roof glass panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M exterior pack carbon |
S71CA=No |
||||||||
| 01 | Glass sunroof | 1 | 54105A09964 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement left | 1 | 54105A09967 | NoS | Shop at ECS Tuning | |||||
| 02 | Reinforcement right | 1 | 54105A09968 | NoS | Shop at ECS Tuning | |||||
| 03 | Screw self-tapping | M6X14,5 ZNS3 | 8 | 07146967731 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Roof trim | 1 | 54105A96B93 | Shop at ECS Tuning | ||||||
| 05 | Blind rivet, flat headed | 5,0X9,5 | 1 | 07147444158 | Shop at ECS Tuning | |||||
| 06 | Mount. lock Sky Lounge pan.glass sunroof | 4 | 54105A6E966 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G90 M5 M5 Panorama glass roof glass panel?
- This technical diagram illustrates the Panorama glass roof glass panel within the Sliding Roof / Folding Top group for the 5 Series G90 M5 M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Glass sunroof (Part #54105A09964).
- Which models use the hardware listed in this Panorama glass roof glass panel?
- The hardware and components featured in the Panorama glass roof glass panel are specific to the 5 Series G90 M5 M5 produced during 2025. These technical specifications ensure that parts like the Glass sunroof (54105A09964) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Panorama glass roof glass panel assembly?
- Each item in the Panorama glass roof glass panel corresponds to the numbered list below the illustration. For the 5 Series G90 M5 M5, you can identify the Glass sunroof by locating its position on the schematic, which then links to the official BMW part number 54105A09964 for the Sliding Roof / Folding Top section.
